A/C System Control Components In-Cabin, Right

Component Locations: Climatronic / Climatic Systems

A/C System Control Components In-Cabin, right







3 - Position sensor in right side vent -G629-

4 - Position sensor in right center vent -G627-

5 - Humidity sensor -G355-
• Fitted in mirror base

6 - Sunlight photo sensor -G107- => [ Sunlight photo sensor ] See Image Below.

9 - Right vent temperature sensor -G151- => [ Right vent temperature sensor ] See Image Below.
• Behind the glove compartment

10 - Evaporator vent temperature sensor -G263- => [ Evaporator vent temperature sensor ] See Image Below.
• Behind the glove compartment

15 - Right footwell vent temperature sensor -G262- => [ Right footwell vent temperature sensor ] See Image Below.
• Behind the glove compartment

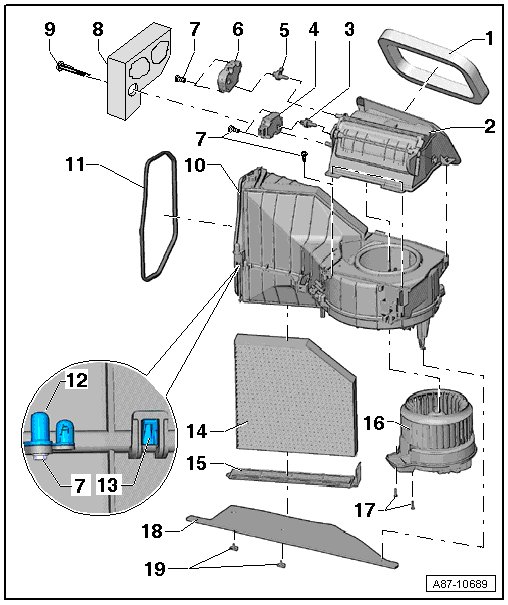

Air intake box






4 - Recirculation door motor -V113-
6 - Airflow door motor -V71-
16 - Fresh air blower -V2- with Fresh air blower control module -J126-

Sunlight photo sensor






3 - Sunlight photo sensor -G107-

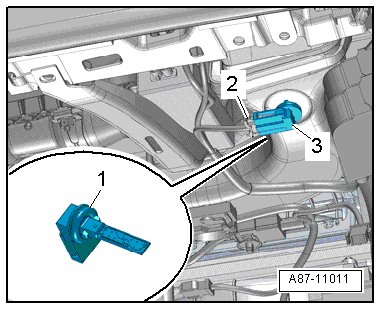

Right vent temperature sensor






3 - Right vent temperature sensor -G151-

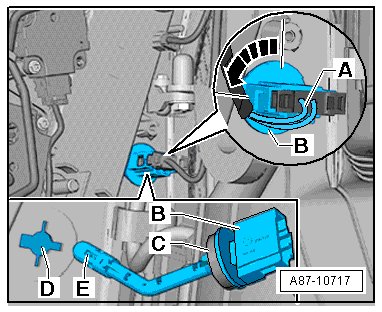

Evaporator vent temperature sensor






B - Evaporator vent temperature sensor -G263-

Right footwell vent temperature
sensor






2 - Right footwell vent temperature sensor -G262-
