Components Outside Passenger Compartment, Front

Component Locations: Climatronic / Climatic Systems

Components Outside Passenger Compartment, front







3 - Outside air temperature sensor -G17- => [ Outside air temperature sensor ] See Image Below.
• Behind the lock carrier assembly

7 - A/C compressor regulator valve -N280- => [ A/C compressor regulator valve ] See Image Below.

9 - A/C pressure/temperature sensor -G395- => [ A/C pressure/temperature sensor ] See Image Below.


Fresh air intake duct






1 - Air quality sensor -G238-
2 - Humidity sensor in fresh air intake duct -G657-
• Both located under the plenum chamber cover

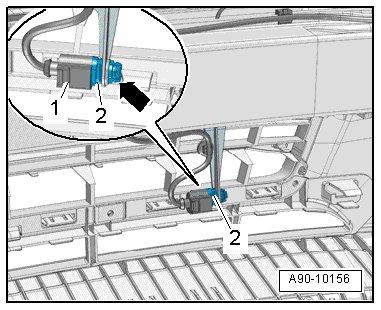

Outside air temperature sensor






2 - Outside air temperature sensor -G17-

A/C compressor regulator valve






A - A/C compressor regulator valve -N280-

A/C pressure/temperature sensor






B - A/C pressure/temperature sensor -G395-
