Components Outside Passenger Compartment, Rear

Component Locations: Climatronic / Climatic Systems

Components Outside Passenger Compartment, rear







3 - Data bus on board diagnostic interface -J533-

4 - Rear window defogger -Z1-

5 - Comfort system central control module -J393- => [ Comfort system central control module ] See Image Below.
• Located behind the luggage compartment side trim (right-side)

8 - Auxiliary heater radio receiver -R64-
• For vehicles with auxiliary heater

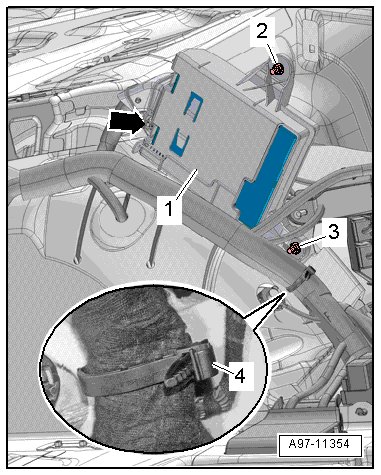

Comfort system central control
module






1 - Comfort system central control module -J393-
