Heads Up Display Unit: Locations

Control modules in front part of vehicle

Windshield Projection Head Up Display Control Module -J898-

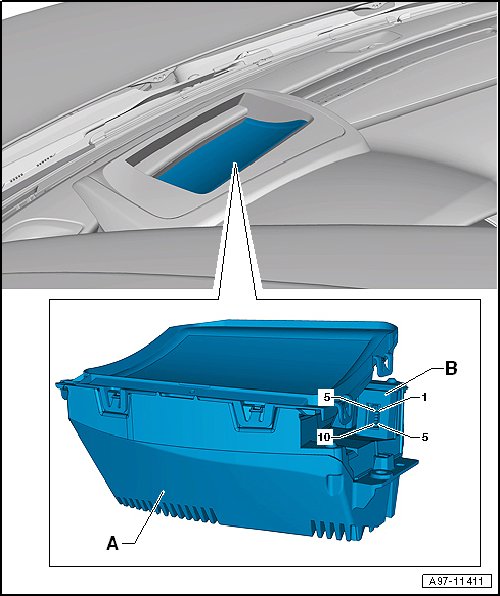

Component Location:
in the front instrument panel, driver's side





A - Windshield Projection Head Up Display Control Module -J898-

B - 10-Pin Connector -T10g- , black
