Backup Lamp: Service and Repair

Bulb Socket

Removing






- Remove the outer tail lamp. Refer to => [ Outer Tail Lamps ] Outer Tail Lamps.

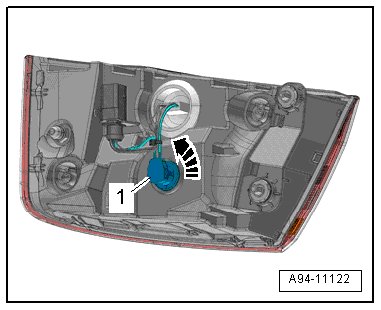

- Turn socket - 1 - counterclockwise - arrow - and remove from housing.

- Remove the bulb from the bulb socket.

Installing

• Tightening specification, refer to=> [ LED Outer Tail Lamps Overview ] LED Outer Tail Lamps Overview.

Install in reverse order of removal. Note the following:

- Insert new bulbs in the bulb socket. Do not touch the glass bulbs with bare hands.

- Install the outer tail lamp. Refer to=> [ Outer Tail Lamps ] Outer Tail Lamps.
