Brake Lamp: Service and Repair

High-Mounted Brake Lamp Bulb

Removing






- Do not press brake pedal.

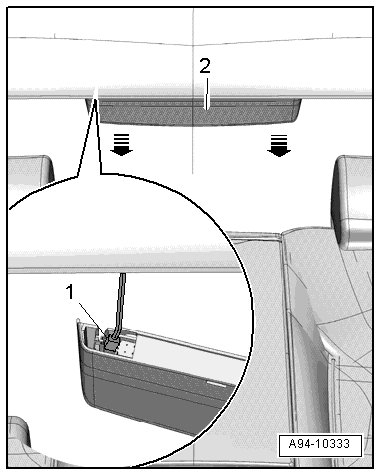

- Pull the high-mount brake light - 2 - back evenly by the cover - arrows -.

- Disconnect the electrical connector - 1 -.

Installing






Install in reverse order of removal. Note the following:

• Entire high-mounted brake light must be replaced in the event of faulty LEDs.

- The mount - 2 - for the high-mount brake light - 3 - must engage evenly at the left and right in the guide rails - 1 -.

- Slide the high-mount brake light forward - arrows - evenly without tilting it until it engages audibly.
