Center Mounted Brake Lamp: Service and Repair

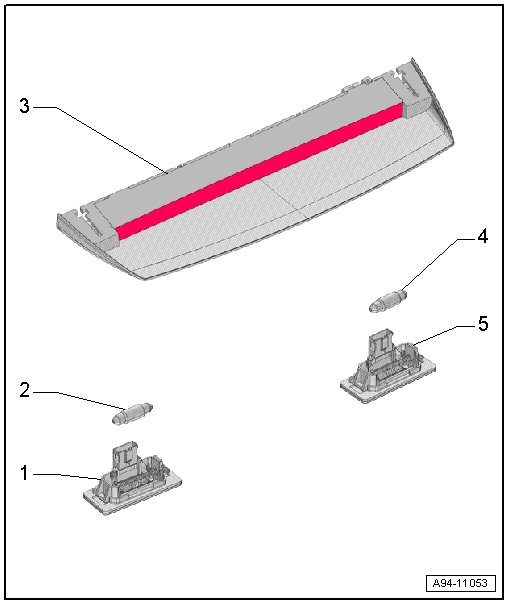

High-Mount Brake Lamp and License Plate Lamps Overview






1 Left License Plate Lamp

• There are different versions. Refer to Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ License Plate Lamps ] License Plate Lamps.

2 Left License Plate Lamp (X4)

• Depending on the date of manufacture

• 12 volt, 5 watt

• Bulb, replacing, refer to => [ License Plate Lamps ] License Plate Lamps.

3 High Mounted Brake Lamp

• With High-mounted brake lamp (M25).

• Removing and installing, refer to => [ High-Mounted Brake Lamp Bulb ] High-Mounted Brake Lamp Bulb.

4 Right License Plate Lamp (X5)

• Depending on the date of manufacture

• 12 volt, 5 watt

• Bulb, replacing, refer to=> [ License Plate Lamps ] License Plate Lamps.

5 Right License Plate Lamp

• There are different versions. Refer to Electronic Parts Catalog (ETKA).

• Removing and installing, refer to => [ License Plate Lamps ] License Plate Lamps.
