Computer/Controls - DTC's P112800/PP113000 Stored

24 A6/A7 DTC P112800 and/or PP113000 set - Repair Authorization

24 12 18

2028716/1

February 22, 2012.

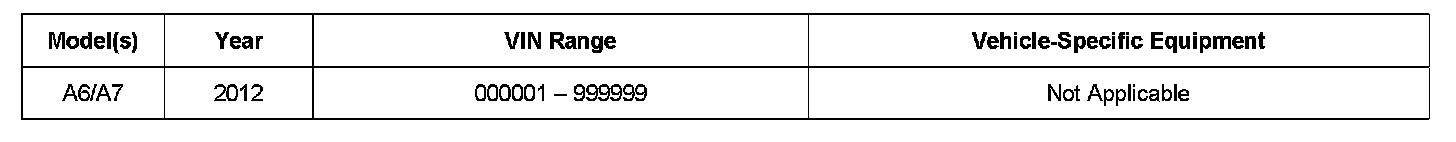

Affected Vehicles

Condition
DTC P112800 and or P113000 (Long Term Fuel Trim mult., Bank 1/2 System too Lean Sporadic) are stored in ECM memory.

Technical Background

Various parts have been replaced under warranty for the condition noted above, but no issues were identified with these parts. In an effort to gain information on the DTC codes for the vehicles listed above, we are asking that you contact the Audi Technical Assistance Center (TAC) before replacing any parts. This will assist us in diagnosing any potential issues with the condition noted above.

Production Solution

No changes to production have been made, as no issue has been identified.

Service

Audi of America is requesting your cooperation in supplying us with technical information regarding this condition.

1. Verify DTC P112800 and/or P113000 stored in memory.





Read out above listed MVBs.

2. Please contact a TAC consultant before proceeding. Do NOT delete the DTCs.

3. Please attach the DTC and diagnostic log to the TAC ticket.

Warranty

This TSB is informational only and not applicable to any Audi warranty.

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
