Restraints - DTC For Seatbelt Tensioner Voltage Too Low
69 DTC entry for seatbelt tensioner voltage too low68 11 09
2028322/1
December 19, 2011.

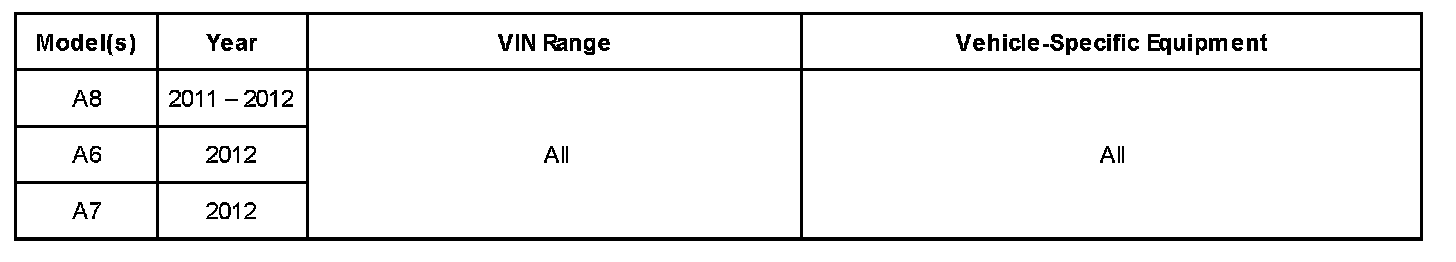

Affected Vehicles
Condition
While scanning the vehicle with GFF, the entry B120216 reversible belt tensioner voltage too small in address code 90 and 8F may be stored, and the vehicle has software version 060 or 070.
Technical Background
This is an incorrect diagnosis which can occur if different signals coincide in a very short time. Only software versions 060 and 070 are affected.
Tip: The operation of the reversible seatbelt tensioner is not affected by this fault code, and functions according to design intent.
Production Solution
Software change with new version 080.
Service
Clear the fault code in GFF.
Do not perform any additional repairs.
Warranty
This TSB is informational only and not applicable to any Audi warranty.
Additional Information
All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
