Dual Input Clutch Assembly: Service and Repair

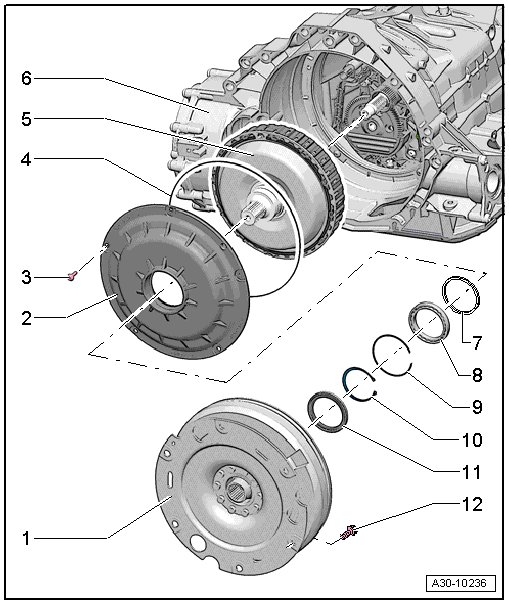

Flywheel and Dual Clutch Overview

All assembly work and tightening specifications are outlined in the "7 Speed DSG Transmission 0B5, Servicing, (S-Tronic)" repair manual.






1 Flywheel

2 Clutch Cover

There are different versions depending on the date of manufacture, with or without a thrust washer (- item 7 - => [ (Item 7) Thrust Washer ] ), allocation, refer to the Parts Catalog

3 Bolt

4 O-ring

Replace

5 Dual Clutch

Refer to the Parts Catalog because there are different versions depending on the date of manufacture.

Always perform the necessary "Guided Functions" on the vehicle diagnosis tester after replacing the dual clutch. Refer to => [ Transmission Guided Functions ] 0B5A (S-Tronic) Transmission.

6 Transmission Housing

7 Thrust Washer

Depending on the date of manufacture, clutch cover allocation, refer to the Parts Catalog

8 Ball Bearing

For the input shaft

9 Locking Ring

For ball bearing

Replace

10 Locking Ring

For the dual clutch

Replace

11 Shaft Seal

For the input shaft

12 Bolt

Quantity: 6 for 6-cylinder engines
