Accessories and Optional Equipment: Locations
Overview of Control Modules
Roof Electronics Control Module -J528-

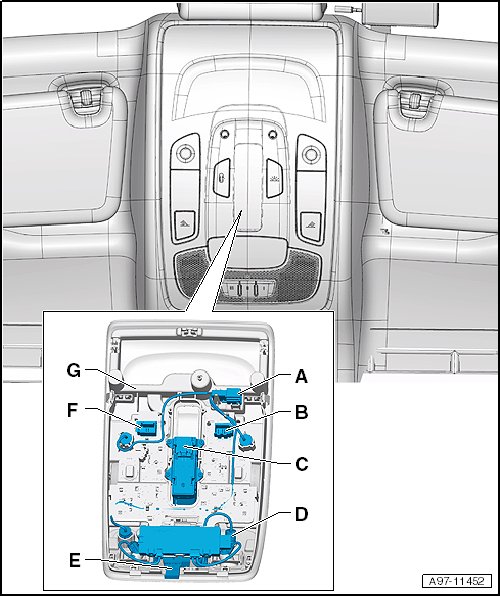

Component Location:
In the front interior light -W1-
A - 6-Pin Connector -T6e- , blue
B - 10-Pin Connector -T10ab- , red
C - 5-Pin Connector -T5d- , black
D - 4-Pin Connector -T4v- , black
E - 6-Pin Connector -T6f- , black
F - 10-Pin Connector -T10ac- , black
G - Roof Electronics Control Module -J528-
