Instrument Panel, Gauges and Warning Indicators: Service and Repair

Left and Right Rear Door Warning Lamp

Removing

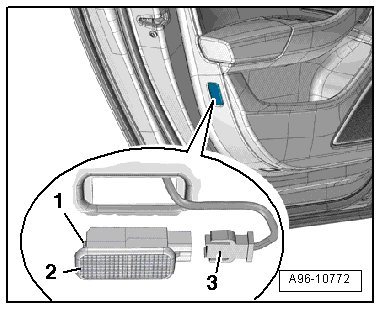

- Press the tab - 1 - with a flat-blade screwdriver and remove the door warning lamp - 2 -.

- Disconnect the electrical connector - 3 -.

- If equipped, carefully pry the cover over the lamp out - arrow -.






- Remove the bulb - 1 - from the socket - 2 - on the back of the door warning lamp.






Installing

Install in reverse order of removal. Note the following:

- Mount the cover on the door warning lamp.

- Insert the door warning lamp into opening and engage on opposite side.
