Component Locations

Overview of Control Modules

Control modules on interior mirror


Component Location:
On front roof pillar.





1 Camera Control Module -J852-
• Component Location and Connectors =>
2 Automatic Day/Night Interior Mirror -Y7- with Light Recognition Sensor -G399-
3 Humidity Sensor -G355-
4 Automatic High Beam Assist Control Module -J844-


Camera Control Module -J852-

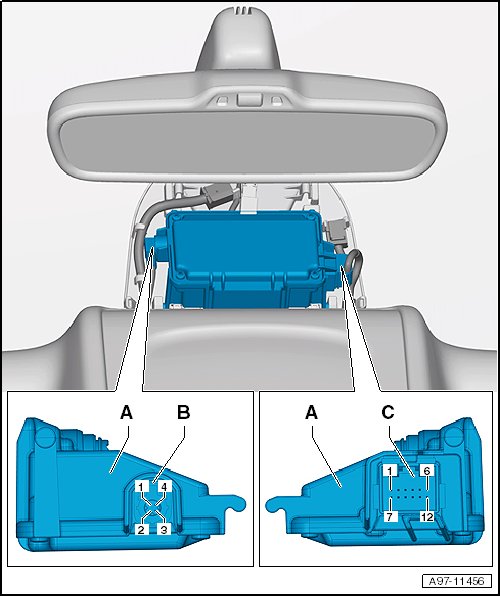

A - Camera Control Module -J852-

B - 5-Pin Connector -T5c- , black

C - 12-Pin Connector -T12a- , black
