Ground Locations

Ground Connections

Overview of Ground Connections







(685) - Ground Connection 1 (on right front long member)

(13) - Ground Connection (in engine compartment, right)

(43) - Ground Connection (on right lower A-pillar)

(45) - Ground Connection (behind instrument panel, center)

(687) - Ground Connection 1 (on center tunnel)

(35) - Ground Connection (below front passenger's seat)

(688) - Ground Connection 2 (on center tunnel)

(654) - Ground Connection (on right D-pillar)

(51) - Ground Connection (in luggage compartment, right)

(744) - Ground Connection in spare tire well

(50) - Ground Connection (in luggage compartment, left)

(653) - Ground Connection (on left D-pillar)

(34) - Ground Connection (below driver's seat)

(704) - Ground Connection 2 (below driver's seat)

(44) - Ground Connection (on left lower A-pillar)

(671) - Ground Connection 1 (on left front long member)

(645) - Ground Connection 1 (on firewall)

(55) - Ground Connection beside ABS Control Module

(664) - Ground Connection (behind instrument panel, left)
• Component Location Right-Hand Drive

(665) - Ground Connection (behind instrument panel, right)
• Component Location Left-Hand Drive






(685) - Ground Connection 1 (on right front long member) -Arrow-
Component Location:
On outside right front long member
Torque Setting:
9 Nm





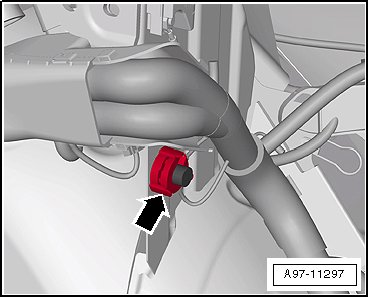

(13) - Ground Connection (in engine compartment, right) -Arrow-
Component Location:
In engine compartment, right, near alternator
Torque Setting:
9 Nm





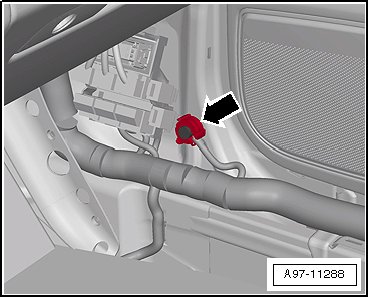

(43) - Ground Connection (on right lower A-pillar) -Arrow-
Component Location:
On right lower A-pillar
Torque Setting:
9 Nm





(687) - Ground Connection 1 (on center tunnel) -Arrow-
Component Location:
On front right center tunnel
Torque Setting:
9 Nm





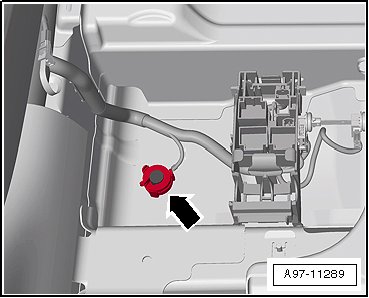

(35) - Ground Connection (below front passenger's seat) -Arrow-
Component Location:
Below passenger's seat, near front passenger's seat coupling
Torque Setting:
9 Nm





(688) - Ground Connection 2 (on center tunnel) -Arrow-
Component Location:
Below rear seat near Data Bus On Board Diagnostic Interface -J533-
Torque Setting:
9 Nm





(654) - Ground Connection (on right D-pillar) -Arrow-
Component Location:
Behind the right rear backrest element
Torque Setting:
9 Nm





(51) - Ground Connection (in luggage compartment, right) -Arrow-
Component Location:
In right luggage compartment, near relay and fuse carrier
Torque Setting:
9 Nm





(744) - Ground Connection in spare tire well -Arrow-
Component Location:
In front right spare tire well
Torque Setting:
9 Nm





(50) - Ground Connection (in luggage compartment, left) -Arrow-
Component Location:
In luggage compartment, left, near Infotainment
Torque Setting:
9 Nm





(653) - Ground Connection (on left D-pillar) -Arrow-
Component Location:
Behind the left rear backrest element
Torque Setting:
9 Nm





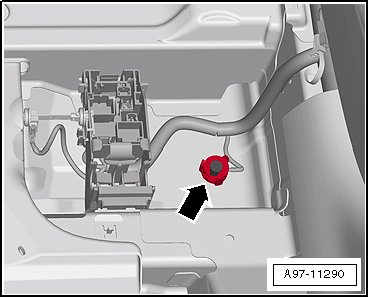

(34) - Ground Connection (below driver's seat) -Arrow-
Component Location:
Below driver's seat, near driver's seat coupling
Torque Setting:
9 Nm





(44) - Ground Connection (on left lower A-pillar) -Arrow-
Component Location:
On left lower A-pillar
Torque Setting:
9 Nm





(704) - Ground Connection 2 (below driver's seat) -Arrow-
Component Location:
Below front driver's seat
Torque Setting:
9 Nm





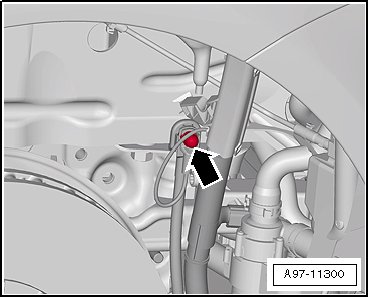

(671) - Ground Connection 1 on left front long member -Arrow-
Component Location:
On left lower front long member
Torque Setting:
9 Nm

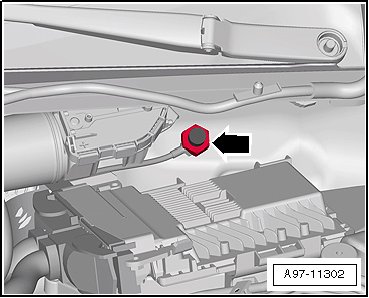

(645) - Ground Connection 1 (on firewall) -Arrow-
Component Location:
On firewall near Engine Control Module (ECM) -J623-
Torque Setting:
9 Nm





(55) - Ground Connection beside ABS Control Module -Arrow-
Component Location:
On left long member, near ABS Control Module -J104-
Torque Setting:
9 Nm





(665) - Ground Connection (behind instrument panel, right) -Arrow-
Component Location:
Behind glove compartment, near front passenger's airbag
Torque Setting:
9 Nm





(664) - Ground Connection (behind instrument panel, left) -Arrow-
Component Location:
Behind glove compartment, near front passenger's airbag
Torque Setting:
9 Nm





(45) - Ground Connection (behind instrument panel, center) -Arrow-
Component Location:
Behind lower instrument panel, center
Torque Setting:
9 Nm
