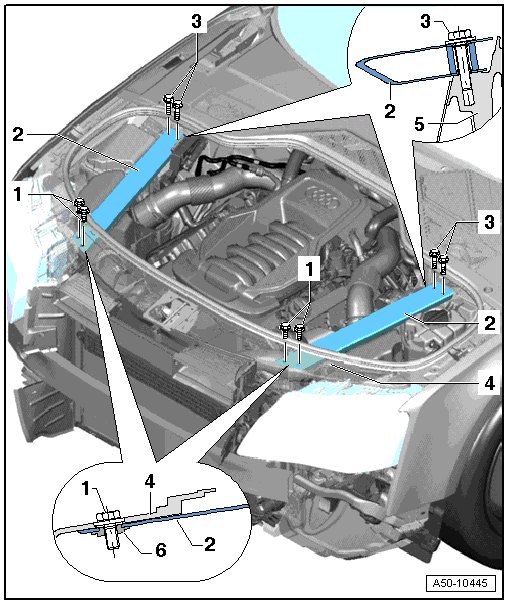

Upper Longitudinal Member

Upper Longitudinal Member






1 Bolt

• 24 Nm

2 Upper longitudinal member

• Removing

- Remove the lock carrier cover. Refer to => [ Lock Carrier Cover ] Lock Carrier Cover.

- Remove the front and rear bolts and lift out the longitudinal member.

• Installation

- Slide the longitudinal member forward all the way into the lock carrier and install the front bolts.

- Mount the back end of the suspension strut tower mount and install the rear bolts.

- Tighten bolts to tightening specification.

3 Bolt

• 24 Nm

4 Lock carrier cover

5 Brace

6 Fastener
