Shift Indicator - A/T: Service and Repair

Transmission Selector Lever Unit with Illumination

Removing






- Remove the selector lever cover.

- Remove the bolts - 1, 4 and 5 -.

- Disengage the trim - 2 - from the selector lever cover - 3 - in - direction of arrow -.

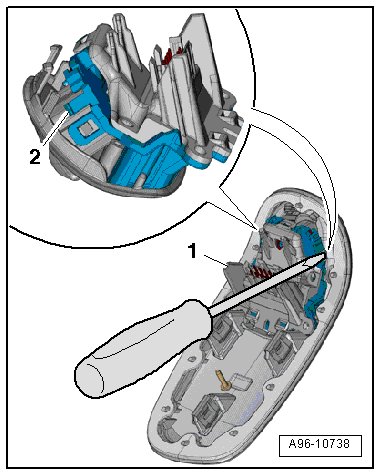

- Release the strap - 2 - with a narrow screwdriver as illustrated.






- Remove the bulb - 1 - from the selector lever cover.

Installing

• Tightening specification, refer to => [ Tightening Specification With ] Center Consoles Lamps and Switches Overview.

Install in reverse order of removal, observing the following:

- Install the selector lever cover.
