Grounding Point: Locations

Ground Connections

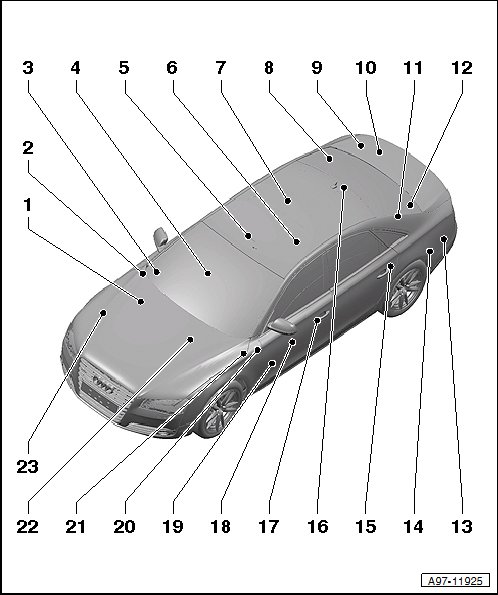

Overview of Ground Connections







1 (MP600) Ground Connection (on cylinder head, right)
• Component Location V8 FSI
• Component Location V8 FSI
• Component Location V6 FSI
2 (638) Ground Connection (on right A-pillar)
3 (43) Ground Connection (on right lower A-pillar)
4 (35) Ground Connection (below front passenger's seat)
5 (689) Ground Connection (on center/front roof)
6 (688) Ground Connection 2 (on center tunnel)
7 (62) Ground Connection (on right C-pillar)
8 (675) Ground Connection 2 (in right luggage compartment)
9 (51) Ground Connection (in right luggage compartment)
10 (624) Ground Connection (near starter battery)
11 (657) Ground Connection 1 (near left rear window)
12 (733) Ground Connection 3 (in left luggage compartment)
13 (676) Ground Connection 2 (in left luggage compartment)
14 (50) Ground Connection (in left luggage compartment)
15 (61) Ground Connection (on left C-pillar)
16 (690) Ground Connection (on rear center roof frame)
17 (34) Ground Connection (below driver's seat)
18 (602) Ground Connection (in front left footwell)
19 (687) Ground Connection 1 (on center tunnel)
20 (44) Ground Connection (on left lower A-pillar)
21 (639) Ground Connection (on left A-pillar)
22 (MP601) Ground Connection (on cylinder head, left)
• Component Location V8 FSI
• Component Location V8 FSI
• Component Location V6 FSI
23 (685) Ground Connection 1 (on right front long member)

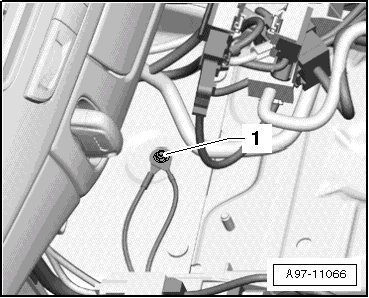

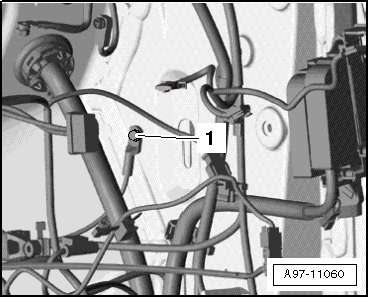

1 - (638) Ground Connection (on right A-pillar)
Component Location:
On A-pillar, right.
Torque Setting:
9 Nm

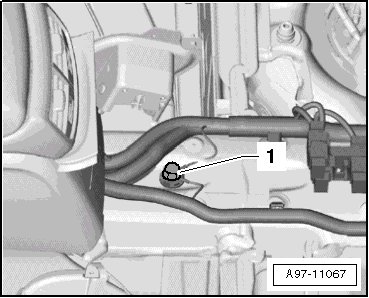

1 - (43) Ground Connection (on right lower A-pillar)
Component Location:
On right lower A-pillar.
Torque Setting:
9 Nm





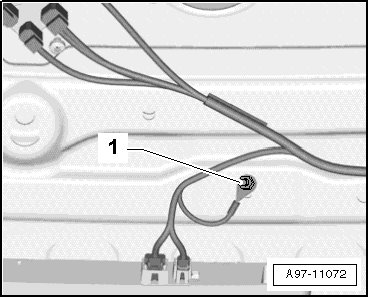

1 - (35) Ground Connection (below front passenger's seat)
Component Location:
Below front passenger's seat.
Torque Setting:
9 Nm

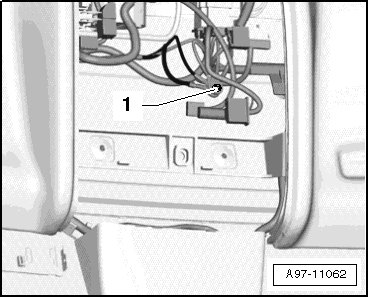

1 - (689) Ground Connection (on center/front roof)
Component Location:
On center/front roof behind Front Interior Light -W1- .
Torque Setting:
9 Nm





1 - (688) Ground Connection 2 (on center tunnel)
Component Location:
Below rear center console.
Torque Setting:
9 Nm

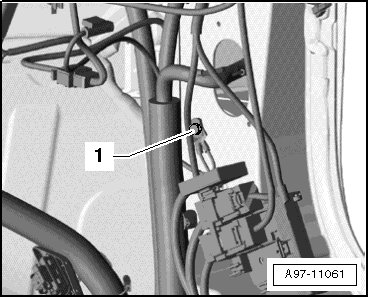

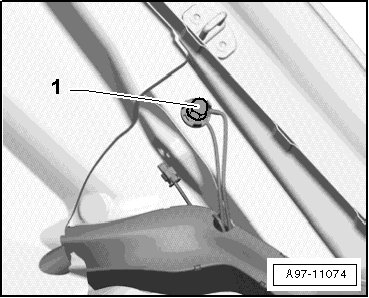

1 - (62) Ground Connection (on right C-pillar)
Component Location:
On right lower C-pillar.
Torque Setting:
9 Nm

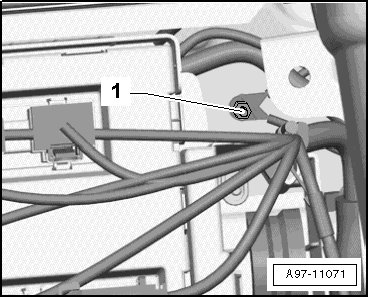

1 - (675) Ground Connection 2 (in right luggage compartment)
Component Location:
In luggage compartment right, on rear wall beside control
modules bracket
Torque Setting:
9 Nm





1 - (51) Ground Connection (in right luggage compartment)
Component Location:
In right rear luggage compartment, below storage compartment
Torque Setting:
9 Nm





1 - (624) Ground Connection (near starter battery)
Component Location:
In right rear luggage compartment beside Battery -A- .
Torque Setting:
20 Nm

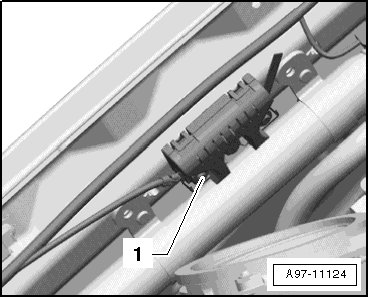

1 - (657) Ground Connection 1 (near left rear window)
Component Location:
On left rear window near Windshield Antenna Suppression Filter -C18- .
Torque Setting:
9 Nm





1 - (733) Ground Connection 3 (in left luggage compartment)
Component Location:
In luggage compartment left, on rear wall beside sound
amplifier.
Torque Setting:
9 Nm





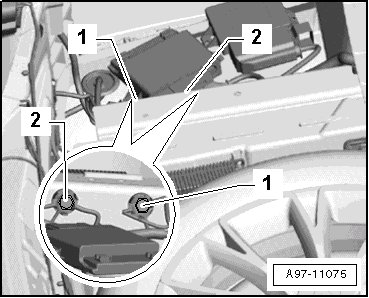

1 - (676) Ground Connection 2 (in left luggage compartment)
Component Location:
In luggage compartment, left rear, below storage compartment
near Electro-Mechanical Parking Brake Control Module -J540- .
Torque Setting:
9 Nm





2 - (50) Ground Connection (in left luggage compartment)
Component Location:
In luggage compartment, left rear, below storage compartment
near Electro-Mechanical Parking Brake Control Module -J540- .
Torque Setting:
9 Nm





1 - (61) Ground Connection (on left C-pillar)
Component Location:
On left lower C-pillar.
Torque Setting:
9 Nm





1 - (690) Ground Connection (on rear center roof frame)
Component Location:
On rear center roof frame near Roof Antenna -R216- .
Torque Setting:
9 Nm





1 - (34) Ground Connection (below driver's seat)
Component Location:
Below driver's seat.
Torque Setting:
9 Nm





1 - (602) Ground Connection (in front left footwell)
Component Location:
In driver footwell on Distance Regulation Control Module -J428- .
Torque Setting:
9 Nm





1 - (687) Ground Connection 1 (on center tunnel)
Component Location:
Below front center console.
Torque Setting:
9 Nm

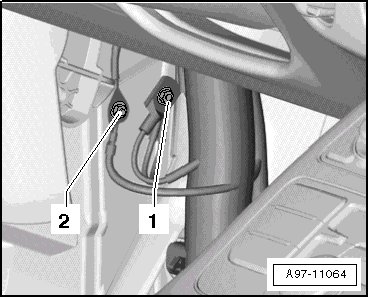

2 - (44) Ground Connection (on left lower A-pillar)
Component Location:
On left lower A-pillar.
Torque Setting:
9 Nm

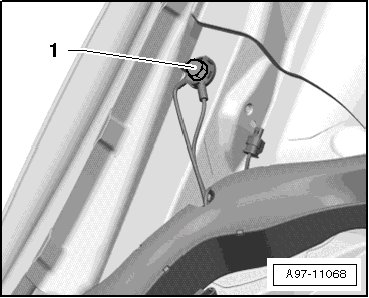

1 - (639) Ground Connection (on left A-pillar)
Component Location:
On left lower A-pillar.
Torque Setting:
9 Nm

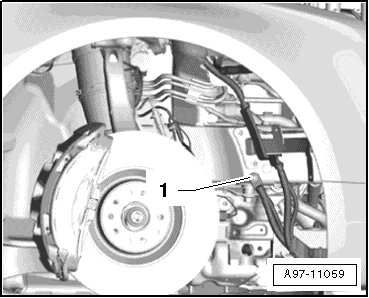

1 - (685) Ground Connection 1 (on right front long member)
Component Location:
On right front long member, behind wheel housing.
Torque Setting:
9 Nm

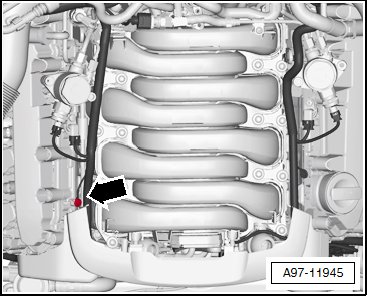

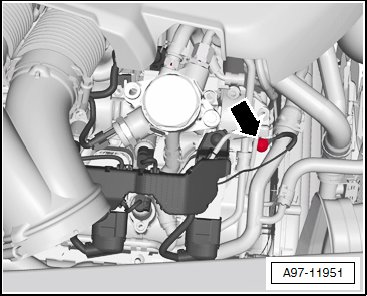

V8 FSI





Arrow - (600) Ground Connection (on cylinder head, right)
Component Location:
On cylinder head, front right
Torque Setting:
9 Nm

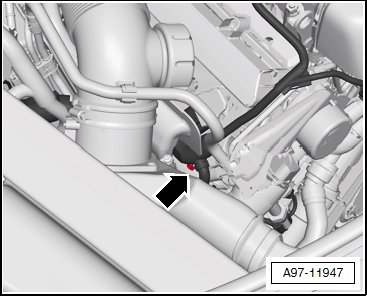

V8 TFSI





Arrow - (600) Ground Connection (on cylinder head, right)
Component Location:
On cylinder head, front right
Torque Setting:
9 Nm

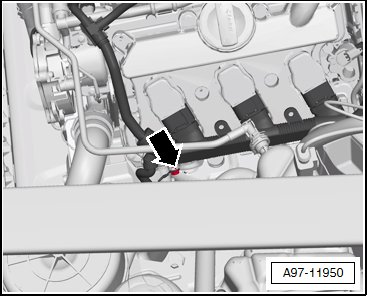

V6 TFSI





Arrow - (600) Ground Connection (on cylinder head, right)
Component Location:
On cylinder head, front right
Torque Setting:
9 Nm
V8 FSI





Arrow - (601) Ground Connection (on cylinder head, left)
Component Location:
On cylinder head, front left
Torque Setting:
9 Nm
V8 TFSI





Arrow - (601) Ground Connection (on cylinder head, left)
Component Location:
On cylinder head, front left
Torque Setting:
9 Nm
V6 TFSI





Arrow - (601) Ground Connection (on cylinder head, left)
Component Location:
On cylinder head, front left
Torque Setting:
9 Nm
