Fuel Pump(s) and Sensors


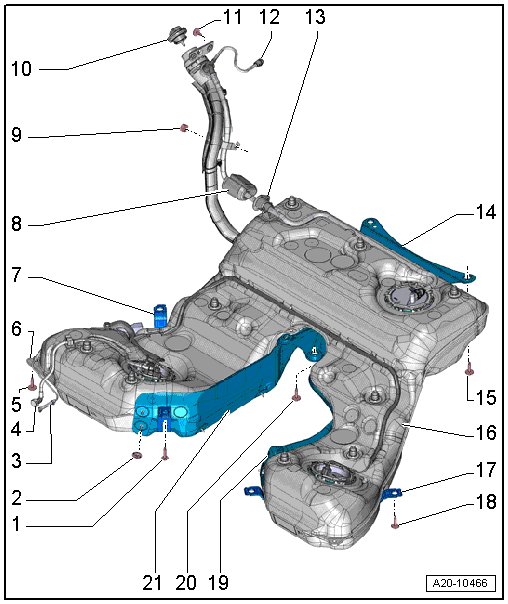

Fuel Tank with Attachments Assembly Overview

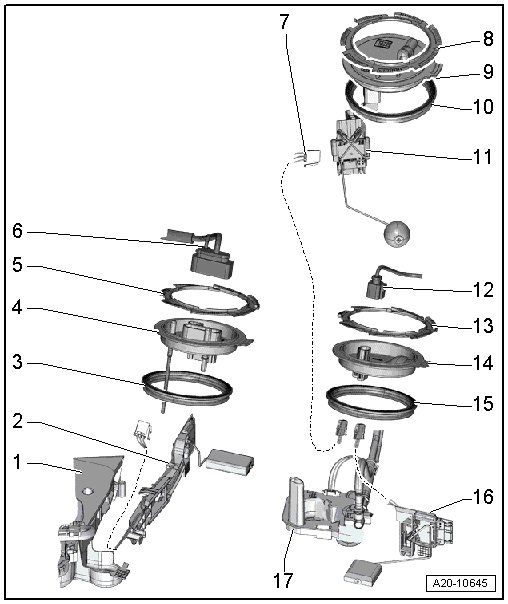

Fuel Level Sensor Assembly Overview





1 - Baffle Housing
• Welded to fuel tank

2 - Fuel level sensor -G-
• Clipped on to the baffle housing

6 - Electrical Harness Connector
• For Fuel level sensor -G-

7 - Electrical Harness Connector
• For Fuel level sensor 3 -G237-
• Inside the fuel tank
• Attached to the intake line with cable ties

11 - Fuel level sensor 3 -G237-

12 - Electrical Harness Connector
• For Fuel level sensor 2 -G169- and Fuel level sensor 3 -G237-

16 - Fuel level sensor 2 -G169-

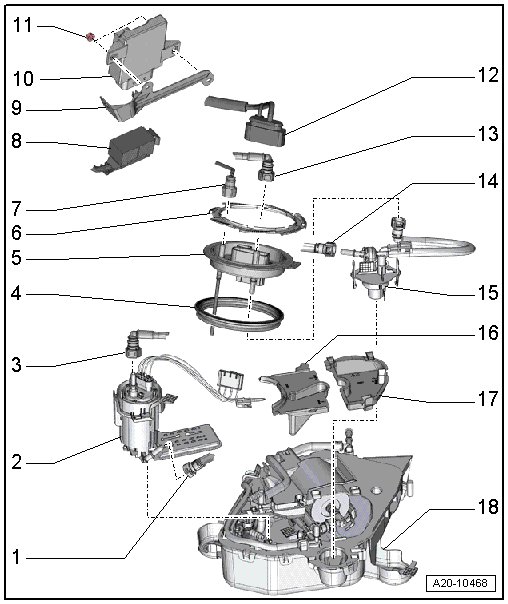

Fuel Delivery Unit Assembly Overview





1 - Suction Jet Pump

2 - Fuel Delivery Unit
• With Transfer fuel pump -G6-

8 - Electrical Harness Connector
• For Fuel pump control module -J538-

10 - Fuel pump control module -J538-

12 - Electrical Connectors
• For Transfer fuel pump -G6- and Fuel level sensor -G-
