Interior - Instrument Panel Vents Can't Be Adjusted

85 Instrument panel vents cannot be adjusted

85 13 14

2033428/1

March 28, 2013





Vehicle Information

Condition

The instrument panel vents cannot be adjusted. The knob may be broken.

Technical Background





The force required to adjust the vent is greater than the attachment strength of the knob. As a result, the knob may break (Figure 1).

Production Solution

A more robust vent assembly is implemented.

Service

Replace the instrument panel vent.

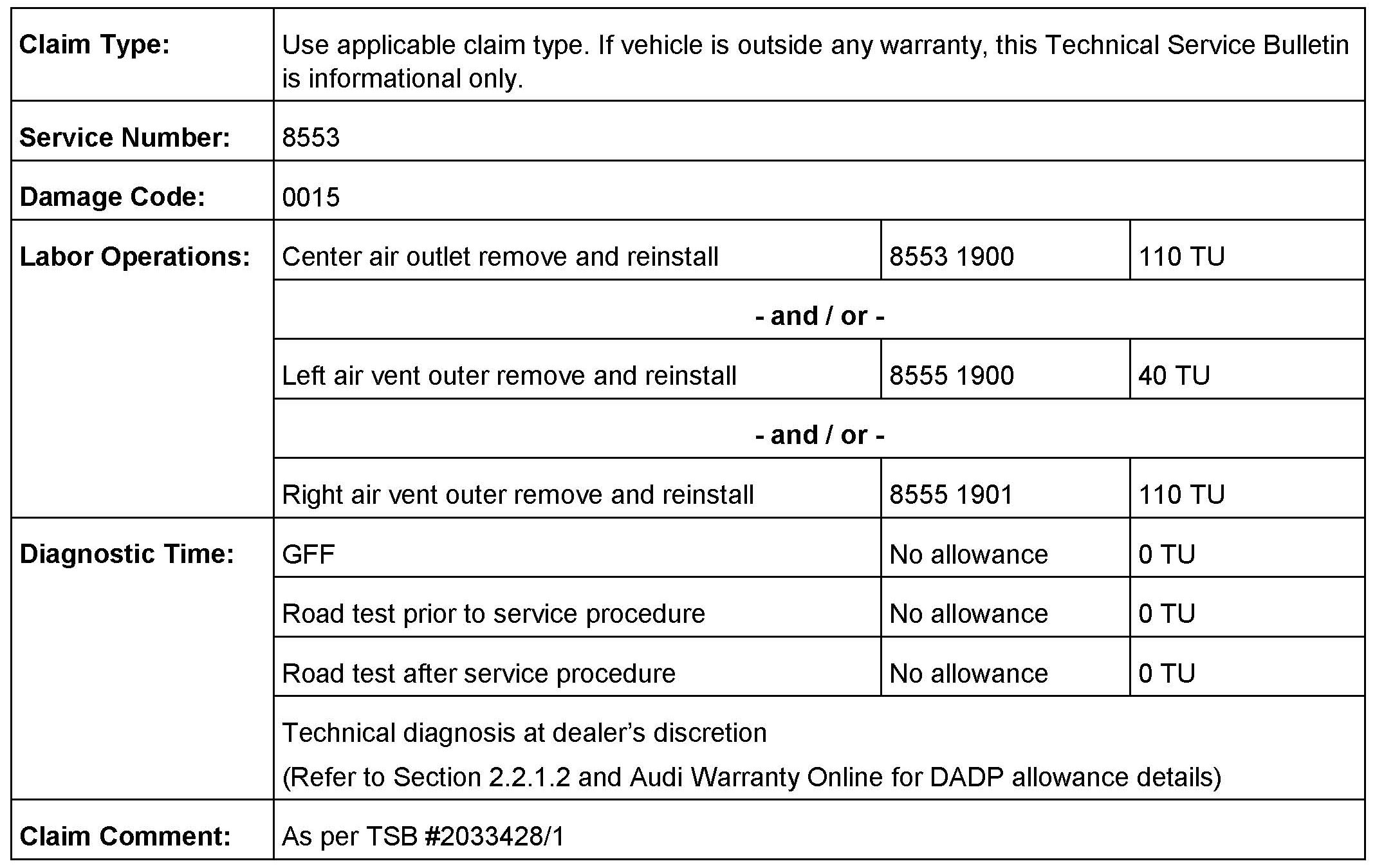

Warranty

All warranty claims submitted for payment must be in accordance with the Audi Warranty Policies and Procedures Manual. Claims are subject to review or audit by Audi Warranty.

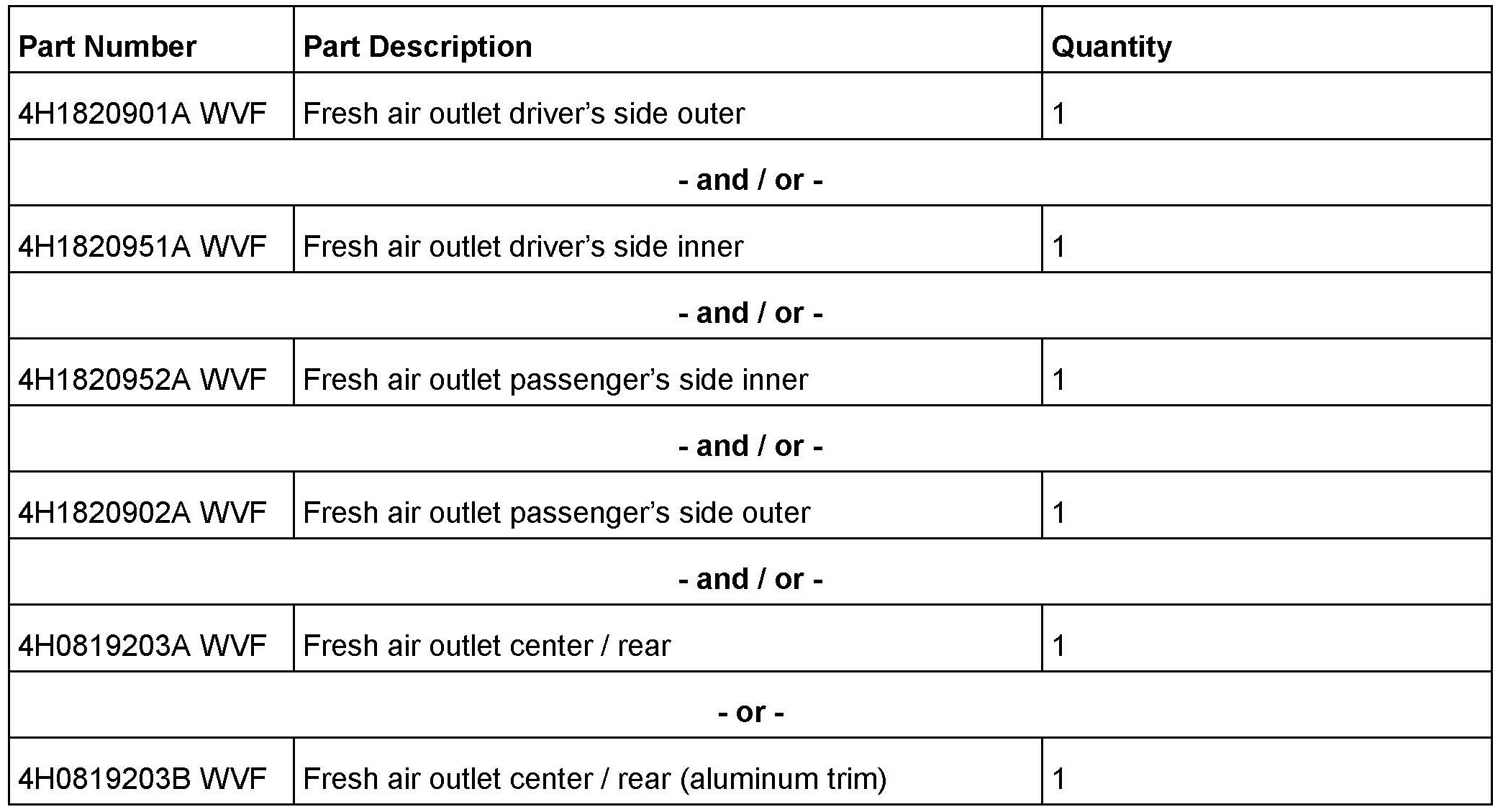

Required Parts and Tools

Additional Information

All parts and service references provided in this TSB are subject to change and/or removal. Always check with your Parts Department and service manuals for the latest information.
