Headlamp Washer Pump: Service and Repair

Headlamp Washer Pump (V11)

Removing






- Remove the washer fluid reservoir. Refer to=> [ Windshield Washer Fluid Reservoir ] Windshield Washer Fluid Reservoir.

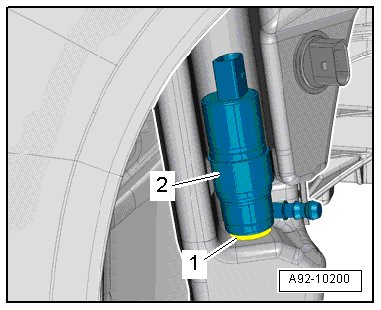

- Remove the headlamp washer pump - item 2 - upward out of the washer fluid reservoir.

Installing

Install in reverse order of removal. Note the following:

- Check the sealing grommet - 1 - for damage.

- Install the washer fluid reservoir. Refer to=> [ Windshield Washer Fluid Reservoir ] Windshield Washer Fluid Reservoir.
