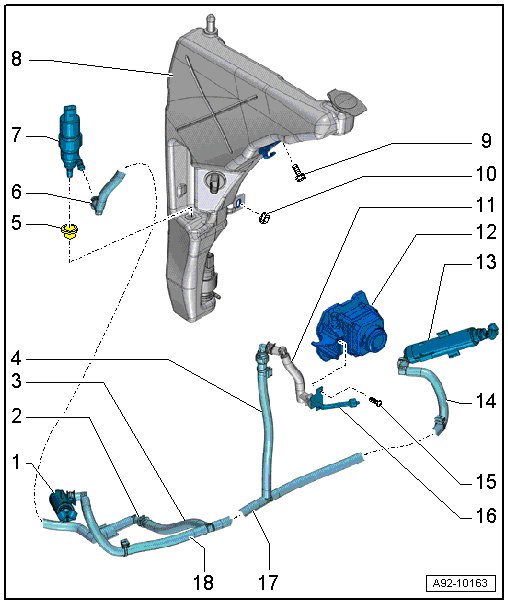

Headlamp Washer Fluid Reservoir, Hose and Nozzle Overview

Headlamp Washer Fluid Reservoir, Hose and Nozzle Overview






1 Right Washer Nozzle

• Removing and installing, refer to => [ Headlamp Washer System Spray Nozzle ] Headlamp Washer System Spray Nozzle.

2 Connection Location

• For the windshield washer fluid hose from the Headlamp washer pump (V11).

3 Washer Fluid Hose

• To the spray nozzles.

4 Washer Fluid Hose

• To the spray nozzle for the night vision camera.

5 Sealing Grommet

• For the Headlamp washer pump (V11).

6 Washer Fluid Hose

• To the spray nozzles.

7 Headlamp Washer System Pump (V11)

• Removing and installing, refer to => [ Headlamp Washer Pump (V11) ] Service and Repair.

8 Washer Fluid Reservoir

9 Screw

• Tightening specification, refer to item 10 => [ Screw ] Removal and Replacement.

10 Nut

• Tightening specification, refer to item 13 => [ Nut ] Removal and Replacement.

11 Washer Fluid Hose

• To the spray nozzle for the night vision camera.

12 Night Vision Camera (R212)

13 Left Washer Nozzle

• Removing and installing, refer to => [ Headlamp Washer System Spray Nozzle ] Headlamp Washer System Spray Nozzle.

14 Washer Fluid Hose

• For the left spray nozzle.

15 Screw

• 4 Nm

• Quantity: 2

16 Spray Nozzle For The Camera For The Infrared System (R212)

• Removing and installing, refer to => [ Night Vision System Camera Spray Nozzle ] Night Vision System Camera Spray Nozzle.

17 Washer Fluid Hose

• For the left spray nozzle and the night vision camera.

• secured on the bumper with cable ties.

18 Washer Fluid Hose

• For the right spray nozzle.

• Secured on the bumper with cable ties.
