Q5 Quattro (8RB) V6-3.2L (CALB)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
P Code Charts
>>

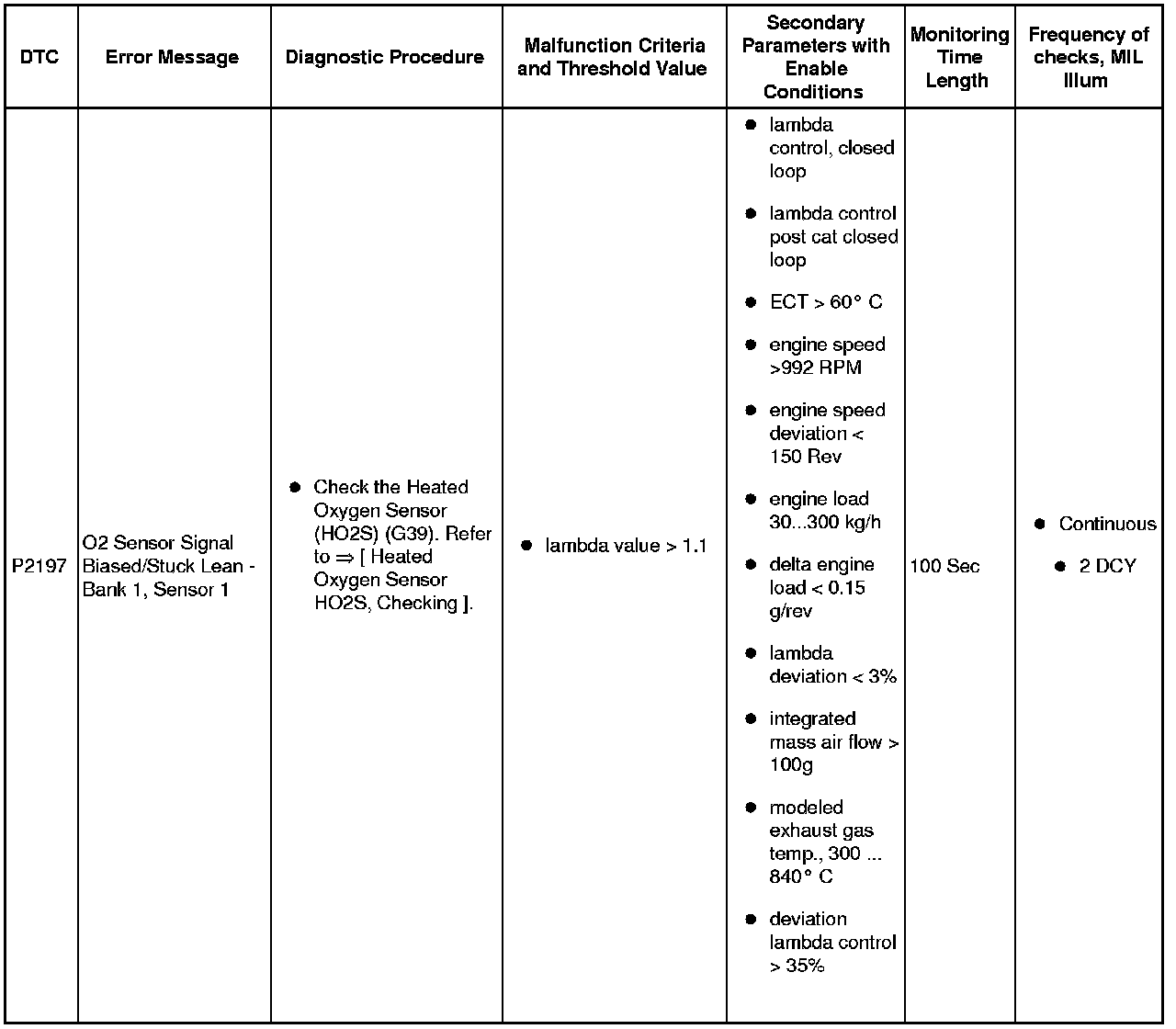

P2197
P2197
DTC Tables
Fuel and air ratio
