Door Lock Reminder Light: Service and Repair

Central Locking -SAFE- Indicator Lamp (K133)

Removing







Danger of unintended engine ignition.

Turn off the ignition and remove the ignition key from the vehicle interior for all work performed on the high voltage vehicle.

- Switch off ignition and remove ignition key.

- Remove the front door trim..

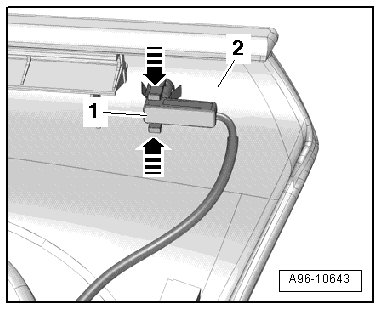

- Release the retaining clips in the direction of the - arrows -.

- Remove the central locking LED - 1 - down out of the door trim - 2 -.

Installing

Install in reverse order of removal, observing the following:

• The new central locking -SAFE- indicator lamp (K133) must be connected with the door trim wiring harness.

- Disconnect the electrical wire and connect it with the new electrical wire for the central locking -SAFE- indicator lamp.

- Slide the central locking LED in until it engages audibly.

- Install the front door trim..
