Vanity Lamp: Service and Repair

Vanity Mirror Illumination (L31)

Removing







Danger of unintended engine ignition.

Turn off the ignition and remove the ignition key from the vehicle interior for all work performed on the high voltage vehicle.

- Switch off ignition and remove ignition key.

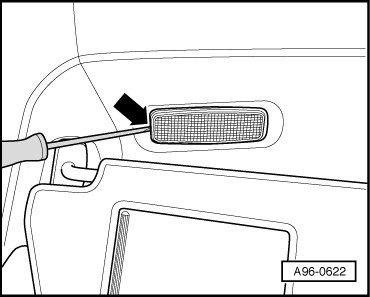

- Using a flat head screwdriver, carefully pry makeup mirror light out at opening - arrow -.

- Disconnect the electrical connector.

- Remove the cover in the direction of the - arrow - to replace the bulb.






- Remove the bulb from the socket on the rear side of the vanity mirror lamp.

Installing

Install in reverse order.
