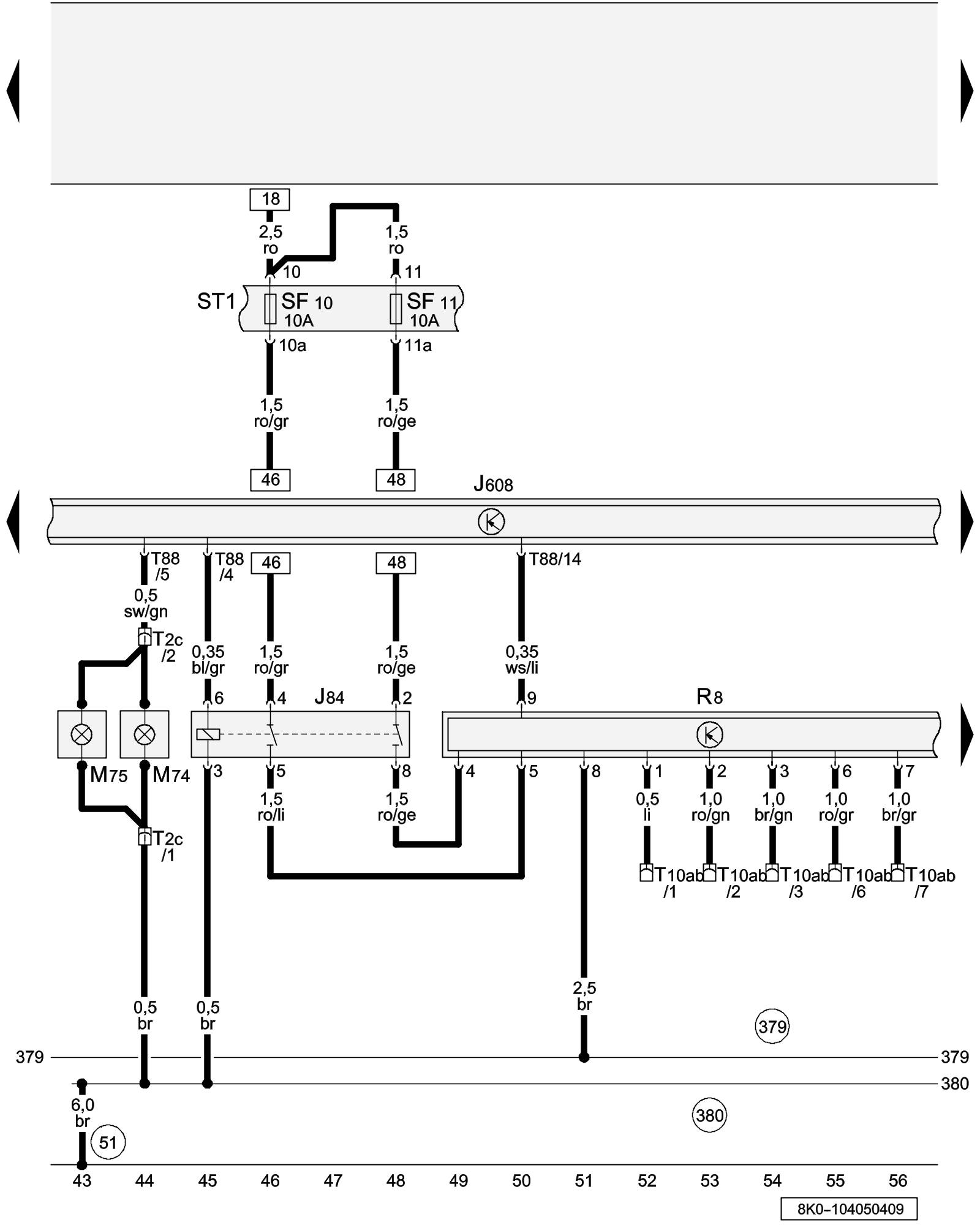

Diagram 104/5 (Tracks 43-56)






IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Two-way radio cut-off relay, Special Purpose Vehicle Control Module, Strobe Lights (in rear lid), Two-Way Radio





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J84 - Two-way radio cut-off relay Overview of Relay

J608 - Special Purpose Vehicle Control Module Overview of Relay

M74 - Right Strobe Light (in rear lid)

M75 - Left Strobe Light (in rear lid)

R8 - Two-way Radio

SF10 - Fuse 10 (on fuse panel F) Overview Of Fuses

SF11 - Fuse 11 (on fuse panel F) Overview Of Fuses

ST1 - Fuse Carrier 1

T2c - Double Connector

T10ab - 10-Pin Connector, red, connector station A-pillar, right Overview Of Connector Stations

T88 - 88-Pin Connector, black

(51) - Ground Connection (in luggage compartment, right) Overview of Ground Connections (4-door Models (Sedan))

(379) - Ground Connection 14 (in main wiring harness)

(380) - Ground Connection 15 (in main wiring harness)
