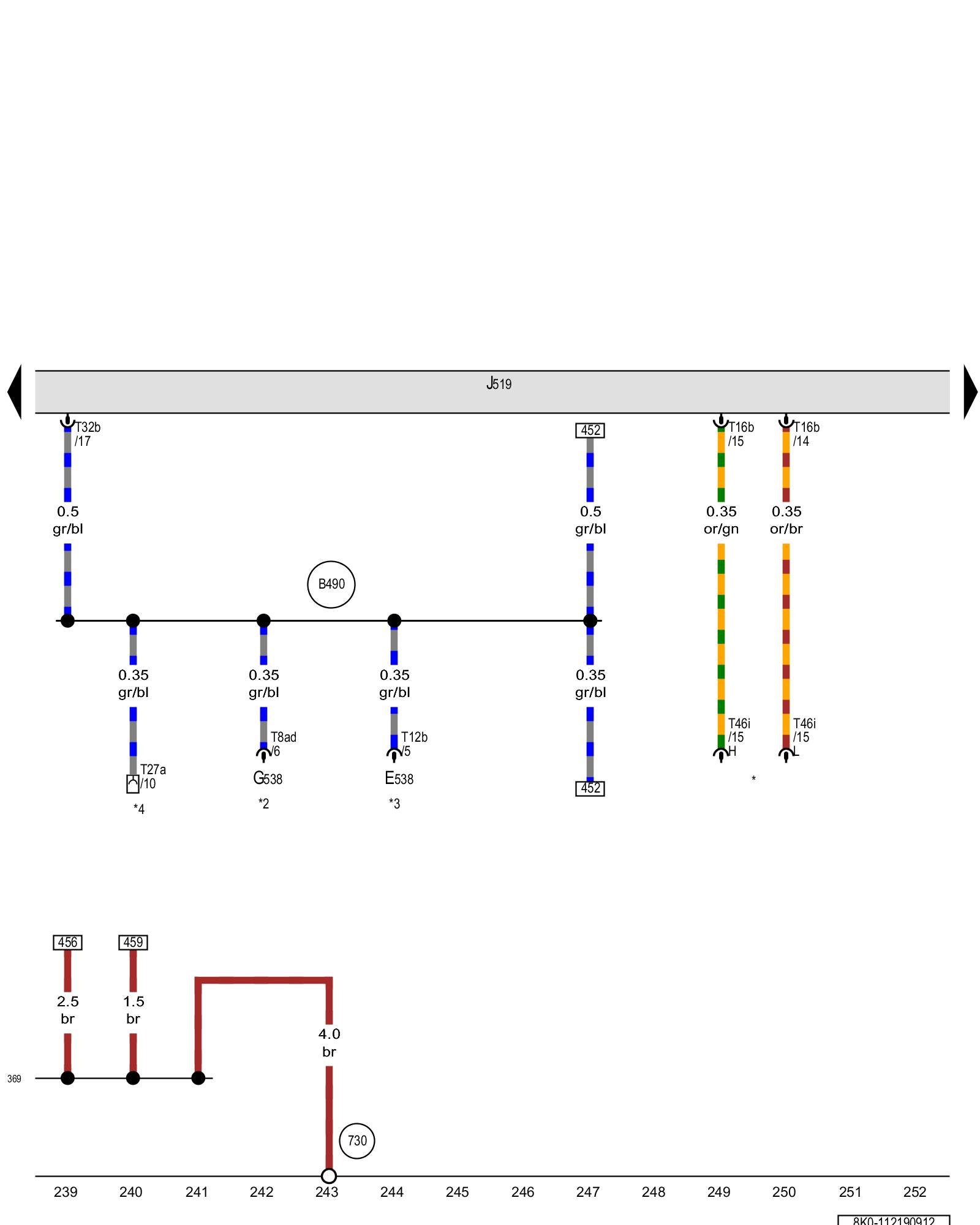

Diagram 112/19 (Tracks 239-252)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Electromechanical parking brake button, Rear temperature selection potentiometer





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E538 - Electromechanical parking brake button

G538 - Rear temperature selection potentiometer Ventilation System

J519 - Vehicle electrical system control module Overview of Control Modules in Interior of Vehicle

T8ad - 8-pin connector

T12b - 12-pin connector

T16b - 16-pin connector Vehicle Electrical System Control Module -J519-

T27a - 27-pin connector, Left A-pillar, bottom

T32b - 32-pin connector Vehicle Electrical System Control Module -J519-

T46i - 46-pin connector Overview Of Connector Stations

(369) - Ground connection 4 (in main wiring harness)

(730) - Ground connection 1 on right rear wheel housing Overview of Ground Connections (4-door Models (Sedan))

(B490) - Connection 26 (in main wiring harness)

* - Driver connection bridge, brown

*2 - Refer to applicable A/C system wiring diagram

*3 - Depending on equipment

*4 - Refer to applicable convenience system wiring diagram
