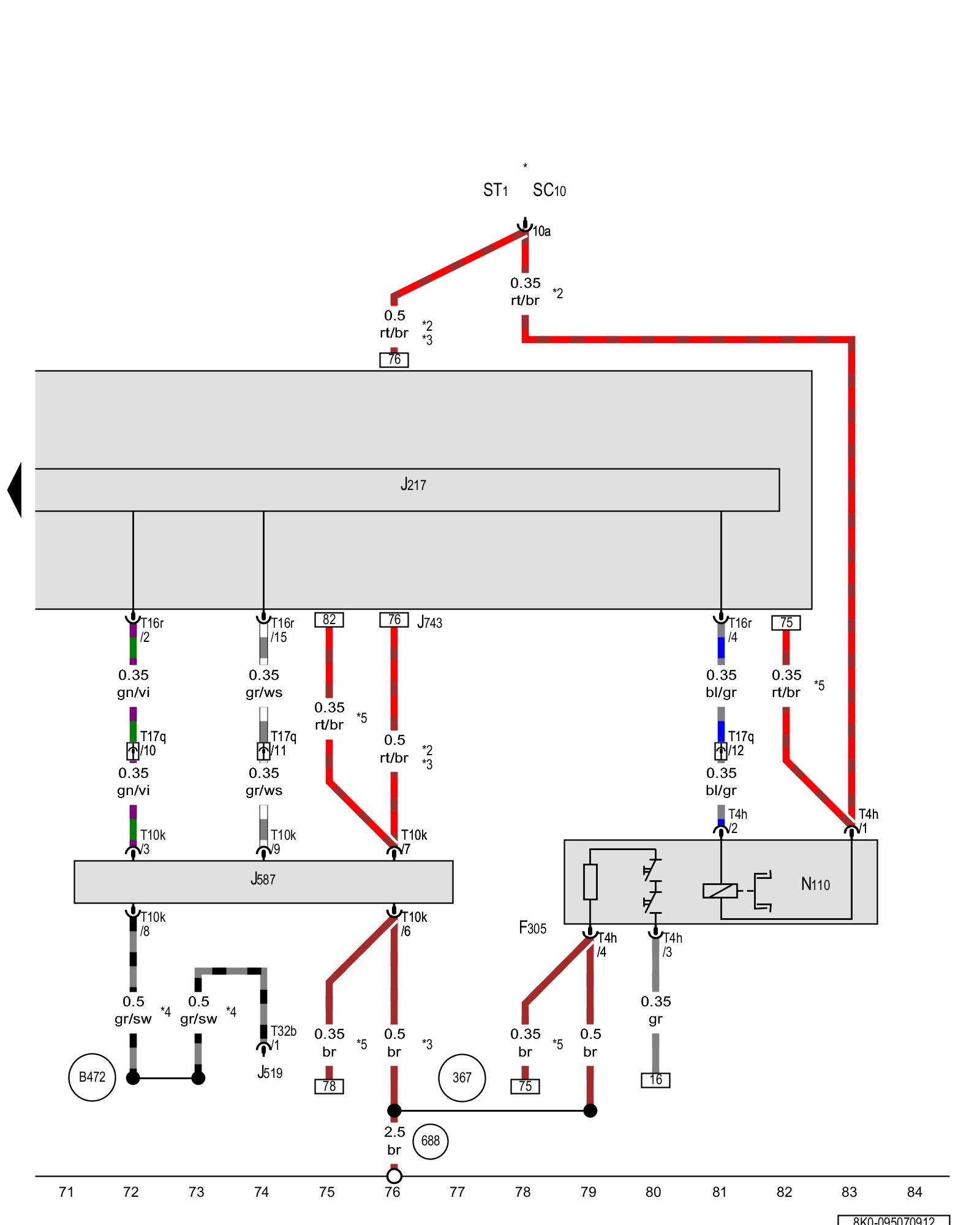

Diagram 95/7 (Tracks 71-84)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Transmission park selector switch, Transmission control module, Selector lever sensor system control module, DSG transmission Mechatronic





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F305 - Transmission park selector switch Selector Mechanism Overview

J217 - Transmission control module Control Modules in Front Part of Vehicle

J519 - Vehicle electrical system control module Overview of Control Modules in Interior of Vehicle

J587 - Selector lever sensor system control module Selector Mechanism Overview

J743 - DSG transmission Mechatronic Control Modules in Front Part of Vehicle

N110 - Shift lock solenoid Selector Mechanism Overview

ST1 - Fuse panel 1

SC10 - Fuse 10 (on fuse panel C) Overview Of Fuses

T4h - 4-pin connector

T10k - 10-pin connector

T16r - 16-pin connector Locations

T17q - 17-pin connector Overview Of Connector Stations

T32b - 32-pin connector Vehicle Electrical System Control Module -J519-

(367) - Ground connection 2 (in main wiring harness)

(688) - Ground connection 2 on center tunnel Overview of Ground Connections (4-door Models (Sedan))

(B472) - Connection 8 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Depending on equipment

*3 - Omitted as a running change

*4 - Diameter depends on equipment

*5 - Running change

Previous Diagram 95/6 (Tracks 57-70)
