Cell Phone Cradle (R126)

Cell Phone Cradle (R126)

- Switch off all electrical consumers.

- Remove the key.

Removing

- Remove the center console storage compartment.

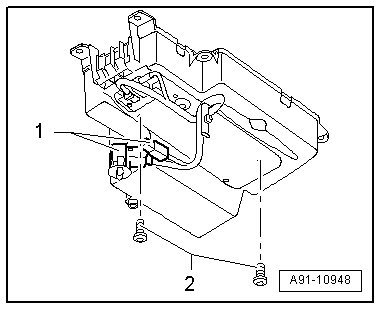

- Disconnect the connector - 1 -.






- Remove the bolts - 2 - on the back side.

- Push telephone baseplate (R126) upward out of storage compartment.

Installing

- Perform the installation in reverse order.

Tightening specifications, refer to => [ Telephone System Overview, through 10.2008 ] Telephone System Overview, Through 10.2008.
