Telephone Transceiver (R36)

Telephone Transceiver (R36)

Special tools, testers and auxiliary items required

• Protective cap for cable connector (VAS 6223/9)

The telephone transceiver is located under the front passenger's seat.

- Switch off all electrical consumers.

- Remove the key.

If control module is replaced, select "Replacement" function for appropriate control module in "Guided Fault-Finding" routine in the Vehicle Diagnostic Tester.

Removing

- Remove the right front seat.

- Fold back the floor covering.

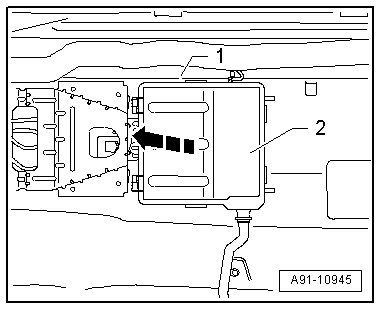

- Disengage cover of E-box - 2 - and open the E-box - 1 -.

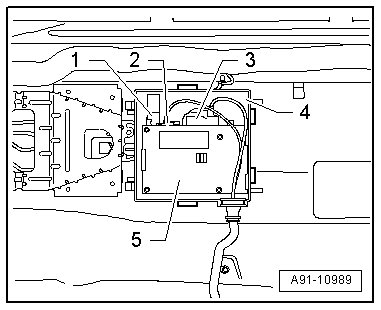

The telephone transceiver is only wedged into the electronics box.

- Pry the telephone transceiver - 5 - out of the E-box - 4 -.






Only with MOST-Bus

- Disconnect electrical connection - 2 -.

- Connect the (VAS 6223/9) - 1 - to the connector for the MOST-Bus - 2 -.






All

- Disconnect the connector - 3 -.






- Disconnect Bluetooth(R) Antenna (R152) - 1 -.

Installing

- Perform the installation in reverse order.

- Readapt Bluetooth(R) connection between telephone transceiver and telephone handset (R36) / cellular telephone (R54).

Overview, refer to => [ Telephone System Overview, from 11.2008 ] Telephone System Overview, From 11.2008.
