Exterior Mirror Vehicles Built Through 05.09 Overview

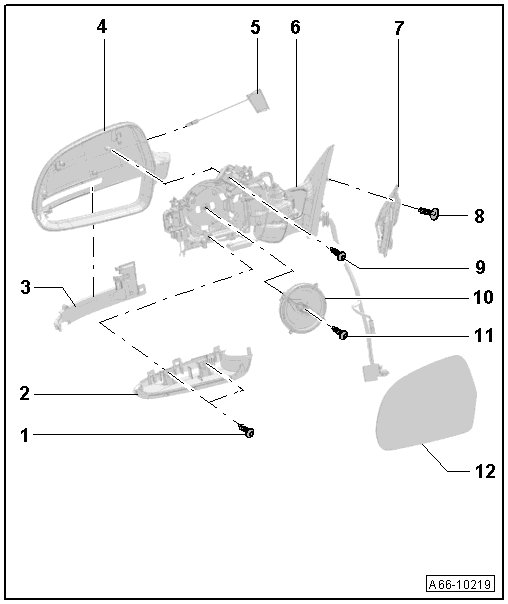

Exterior Mirror Vehicles Built through 05.09 Overview






1 Bolt

• 1 Nm

• Quantity: 3

2 Cover

• For the mirror adjusting unit mount

• Removing and installing, refer to => [ Mirror Adjusting Unit Mount Cover ] Mirror Adjusting Unit Mount Cover.

3 Turn Signal

4 Exterior Rearview Mirror Housing

• Removing and installing, refer to => [ Exterior Rearview Mirror Housing ] Exterior Rearview Mirror Housing.

5 Lane Change Assist Warning Lights

6 Mirror Adjusting Unit Mount

• Removing and installing, refer to => [ Mirror Adjusting Unit Mount ] Mirror Adjusting Unit Mount.

7 Seal

8 Bolt

• 10 Nm

9 Bolt

• 1 Nm

10 Mirror Adjusting Unit

• Removing and installing, refer to => [ Mirror Adjusting Unit ] Mirror Adjusting Unit.

11 Bolt

• 1.5 Nm

12 Mirror Glass

• Removing and installing, refer to => [ Mirror Glass ] Mirror Glass.
