Sunroof / Moonroof: Service and Repair

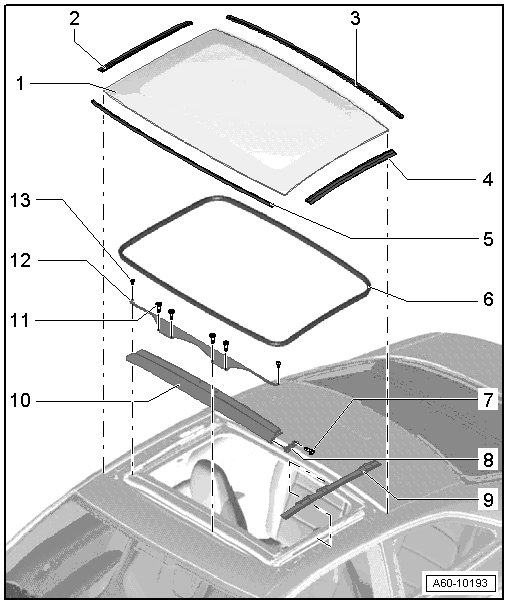

Sunroof
1 Glass Panel
• Removing, refer to => [ Glass Panel ] Service and Repair
2 Right Boot
• Removing
3 Rear Seal
• Self-adhesive:
• The front and rear seals have end caps. Press the seal on by pressing on the end caps and working toward the center.
- Tilt the glass panel.
- Remove the old seal from the glass panel and remove the adhesive residue completely.
- Clean adhesive surface with cleaning solution (D 009 401 04).
- Apply bonding agent (D 009 200 02) to the adhesive surface and let it dry for 10 minutes.
- Remove the protective film from the adhesive tap and press it firmly onto the edge of the panel as shown.
4 Left Boot
• Removing
5 Front Seal
• Self-adhesive
- The glass panel is removed.
• The front and rear seals have end caps. Press the seal on by pressing on the end caps and working toward the center.
- Remove the old seal from the glass panel and remove the adhesive residue completely.
- Clean adhesive surface with cleaning solution (D 009 401 04).
- Apply bonding agent (D 009 200 02) to the adhesive surface and let it dry for 10 minutes.
- Remove the protective film from the adhesive tap and press it firmly onto the edge of the panel as shown.
6 Body Seal
• For removal, the glass panel is removed and the seal is removed from the side body flange.
• Installing
7 Bolt
• 2.5 Nm
8 Glide Piece
• The sun shade is removed.
9 Mount
• Self-adhesive.
• To remove, warm the body using a hot air gun if necessary.
- Remove adhesive residue.
• Adhesion surface must be free of dust and grease.
- Clean adhesive surface with cleaning solution (D 009 401 04).
- Remove the protective film, position the mount with the front stop and press it only firmly.
10 Sun Shade
• Removing, refer to => [ Sun Shade ] Service and Repair
• The glass panel is removed.
• The wind deflector is removed.
Do not operate the sun shade when it is removed or it will be damaged and will have to be replaced.
11 Bolt
• 1 Nm
12 Wind Deflector
• Removing=> [ (Item 4) Wind Deflector ] Service and Repair
13 Bolt
• 1.5 Nm
Boot, Removing
- With the glass panel tilted, remove the boot - 1 - forward out of the mount - 2 - from behind.
- To install, remove the glass panel from the slotted guide rails.
- Lift the glass panel slightly and insert the boot diagonally in the mount.
- Press the boot completely into the mount in stages using a plastic wedge.
Boot, Replacing
- The glass panel is removed.
- Remove the old boot from the glass panel and remove the adhesive residue completely.
- Clean adhesive surface with cleaning solution (D 009 401 04).
- Apply bonding agent (D 009 200 02) to the adhesive surface and let it dry for 10 minutes.
- Remove the protective film from the adhesive tape and press the new boot on firmly at a distance of "dimension a" = 32 mm to the edge of the panel.
Body Seal, Installing
- The glass panel is removed.
- To remove, remove the side seal from the body flange.
- When installing, press the seal - 1 - onto the body flange firmly at a distance of approximately 200 mm from the curve on "mounting point A".
- Press the seal on all around and compress the excess length evenly in "area B" if necessary.
