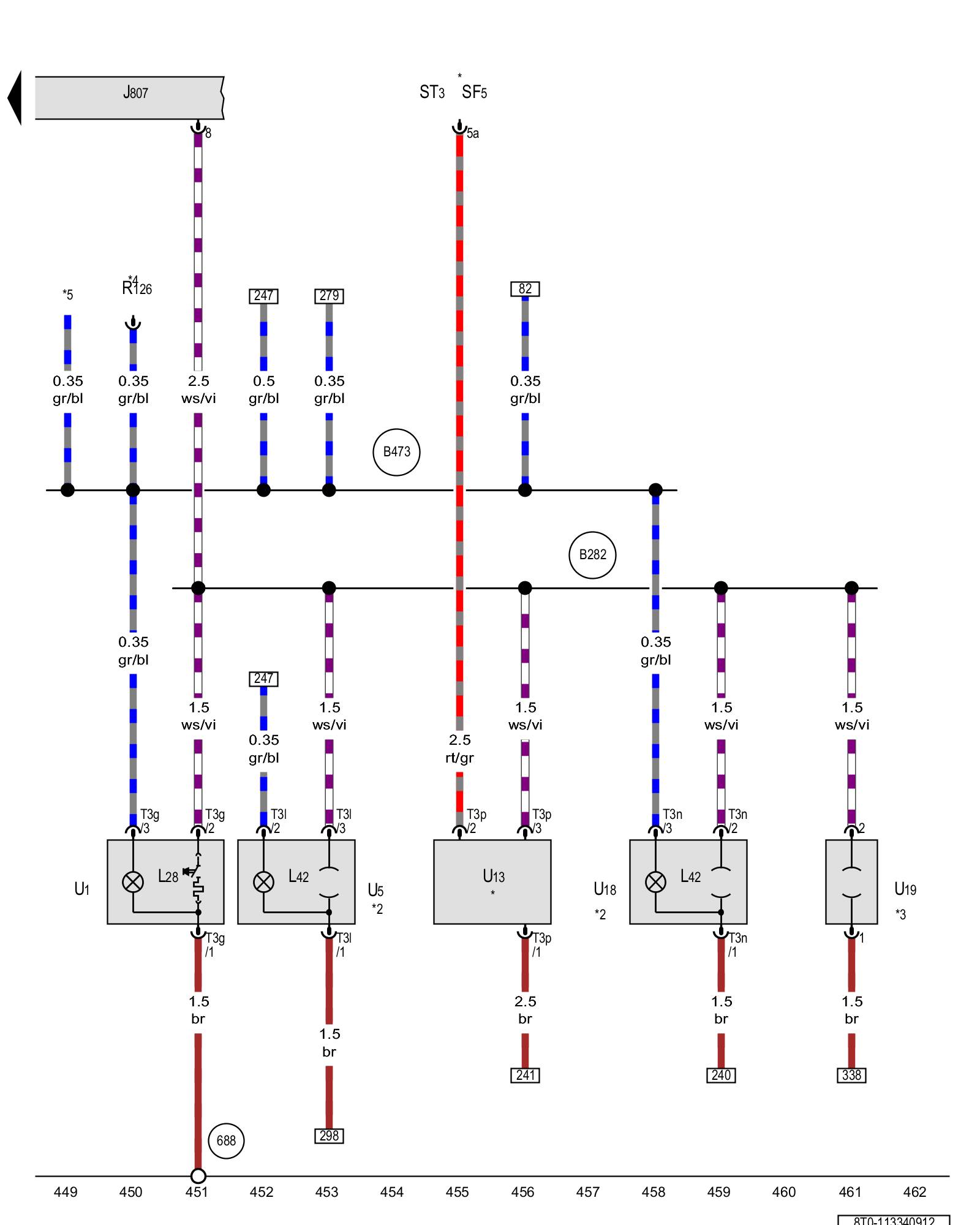

Diagram 113/34 (Tracks 449-462)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Sockets relay, Cigarette lighter, 12 V socket, Converter with socket, 12 V-230 V, 12 V socket 2, 12 V socket 3





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J807 - Sockets relay Overview Of Relay

L28 - Cigarette lighter illumination bulb

L42 - Socket illumination bulb

R126 - Telephone baseplate Telephone/ Telematics Component Locations

ST3 - Fuse panel 3

SF5 - Fuse 5 (on fuse panel F) Overview Of Fuses

T3g - 3-pin connector

T3l - 3-pin connector

T3n - 3-pin connector

T3p - 3-pin connector

U1 - Cigarette lighter

U5 - 12 V socket, in the front center console

U13 - Converter with socket, 12 V-230 V

U18 - 12 V socket 2

U19 - 12 V socket 3

(688) - Ground connection 2 on center tunnel Overview Of Ground Connections (2-door Models (Coupe))

(B282) - Positive connection 6 (15a) (in main wiring harness)

(B473) - Connection 9 (in main wiring harness)

* - Refer to applicable wiring diagram for fuse positions

*2 - Depending on equipment

*3 - Only for vehicles with 12 V socket in luggage compartment

*4 - Refer to applicable telephone systems wiring diagram

*5 - Refer to the applicable heated seats wiring diagram
