Bi-Xenon Headlamps With Cornering Lamp Assembly Overview

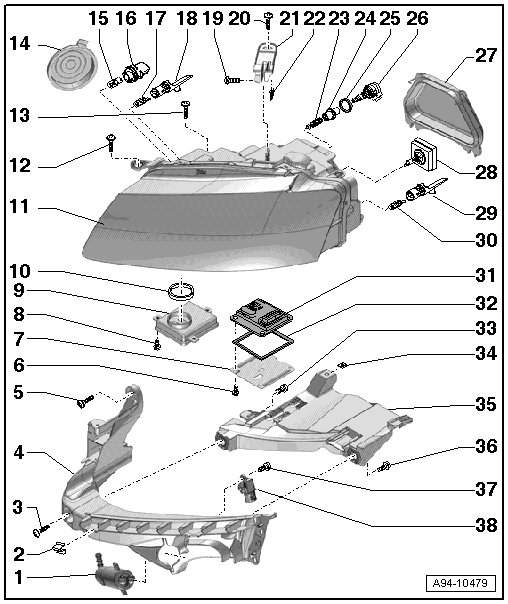

Bi-Xenon Headlamps with Cornering Lamp Assembly Overview






1 Headlamp Washer System Spray Nozzle

2 Mount

• For headlamp washer system washer fluid line

3 Screw

• Tightening specification, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

4 Bracket

• Assembly overview, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

5 Screw

• Tightening specification, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

6 Screw

• 1.4 Nm

7 Retaining Plate

• Removing and installing, refer to => [ Headlamp Power Output Stages ] Headlamp Power Output Stages

8 Screw

• 1.4 Nm

9 HID Headlamp Control Module

• Left high-intensity gas discharge lamp control module (J343)

• Right high-intensity gas discharge lamp control module (J344)

• Removing and installing, refer to => [ HID Lamp Control Module ] HID Lamp Control Module

10 Sealing Ring

11 Headlamp Housing

• Removing and installing, refer to => [ Headlamp Housing ] Headlamp Housing

• The left and right LED parking lamp/DRL modules (L176)/ (L177), the left and right low beam reflector motors (V294)/ (V295) and the left and right dynamic cornering lamp motors (V318)/ (V319) cannot be replaced separately.

12 Screw

• 4.5 Nm

13 Screw

• 4.5 Nm

14 Housing Cover

• For the front turn signal/parking lamp

15 Front Turn Signal Lamp

• Left front turn signal lamp (M5)

• Right front turn signal lamp (M7)

• 12 V, 21 W (H21W)

• Bulb, Replacing, refer to => [ Front Turn Signal Lamp Bulbs ] Front Turn Signal Lamp Bulbs

16 Lamp Socket

• For the front turn signal

17 Parking Lamp Bulb

• Left parking lamp (M43)

• Right parking lamp (M44)

• Glass socket lamp 12V, 5 W

• Bulb, Replacing, refer to => [ Parking Lamp Bulbs ] Parking Lamp Bulbs

18 Lamp Socket

• For the parking lamp bulb

19 Screw

• 4.5 Nm

20 Screw

• 4.5 Nm

21 Headlamp Housing Bracket

22 Speed Nut

23 Ball Joint

• For headlamp height adjustment

24 Adjusting Nut

• For headlamp height adjustment

25 Sealing Ring

26 Headlamp Range Control Positioning Motor

• Left headlamp beam adjustment motor (V48)

• Right headlamp beam adjustment motor (V49)

• Removing and installing, refer to => [ Headlamp Beam Adjustment Motors ] Headlamp Beam Adjustment Motors

27 Housing Cover

• For low beam

28 Gas-Discharge Lamp

• With integrated ignition coil

• Left HID headlamp bulb (L13)

• Right HID headlamp bulb (L14)

• 42 V, 35 W (D3S)

• Bulb, Replacing, refer to => [ HID Headlamp Bulbs ] HID Headlamp Bulbs

29 Lamp Socket

• For the front side marker lamp bulb

30 Front Side Marker Lamp Bulb

• Left front side marker lamp (M33)

• Right front side marker lamp (M34)

• 12V, 5 W

• Bulb, Replacing, refer to => [ Front Side Marker Lamp Bulbs ] Front Side Marker Lamp Bulbs

31 Power Output Stage

• Only for vehicles with cornering lamps

• Left Headlamp Power Output Stage (J667)

• Right Headlamp Power Output Stage (J668)

• Removing and installing, refer to => [ Headlamp Power Output Stages ] Headlamp Power Output Stages

32 Gasket

33 Screw

• Tightening specification, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

34 Speed Nut

35 Mount

• Assembly overview, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

36 Screw

• Tightening specification, refer to => [ Headlamp Housing Bracket and Mount Assembly Overview ] Headlamp Housing Bracket and Mount Assembly Overview

37 Screw

38 Front Airbag Crash Sensor

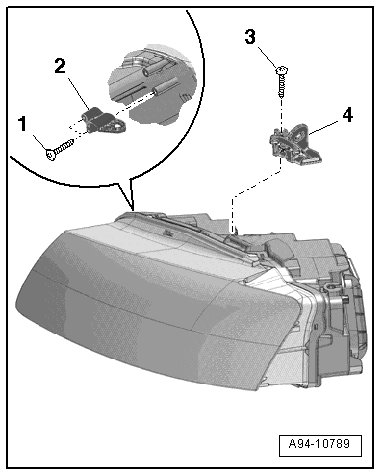

Tightening specification, headlamp housing repair set





- Tighten the screws - 1 - and - 3 - to 6 Nm.
