Oil Pan, Engine

Fastener Tightening Specifications






Oil Cooler Tightening Specifications and Sequence

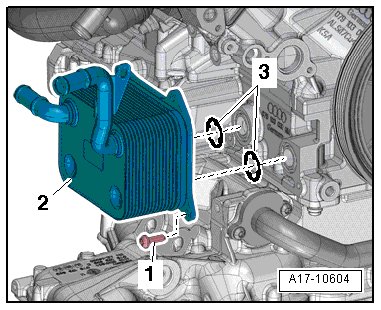

• Replace the gaskets - 3 - for the oil cooler - 2 -.

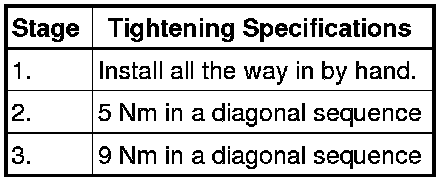

- Tighten bolts in 2 stages as follows:






Oil Pressure Switch (F1) - Tightening Specification






- Replace seal.

- Tighten the oil pressure switch - 1 - to 20 Nm.

Lower Oil Pan, Tightening Specifications and Sequence






- Tight the lower oil pan bolts - 1 - in 3 stages as follows:

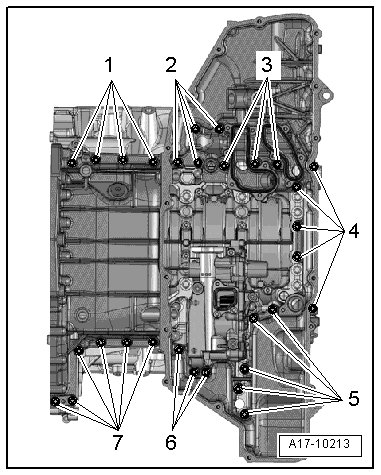

Upper Oil Pan, Tightening Specifications and Sequence






• Replace bolts that are tightened to the specification.

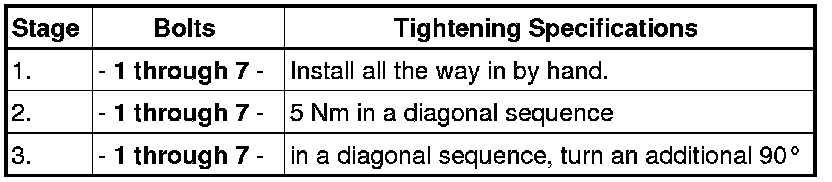

- Tighten bolts in 3 stages as follows:
