A/T - THM-R1 Special Tools

90bmw16 Group 04 Tools and Equipment
Bulletin Number 04 12 90 (3103)
Woodcliff Lake, NJ October 1990 Service Engineering
SUBJECT: New BMW Special Tools

MODEL: THM-RL transmission

The following Special tools have been developed for the THM-RI transmission and will be sent to all automotive BMW dealers under the Automatic Tool Shipment Program.



Alignment Pins (2) P/N 88 88 6 245 150 Introd. Price = $8.12
Used to center valve body.

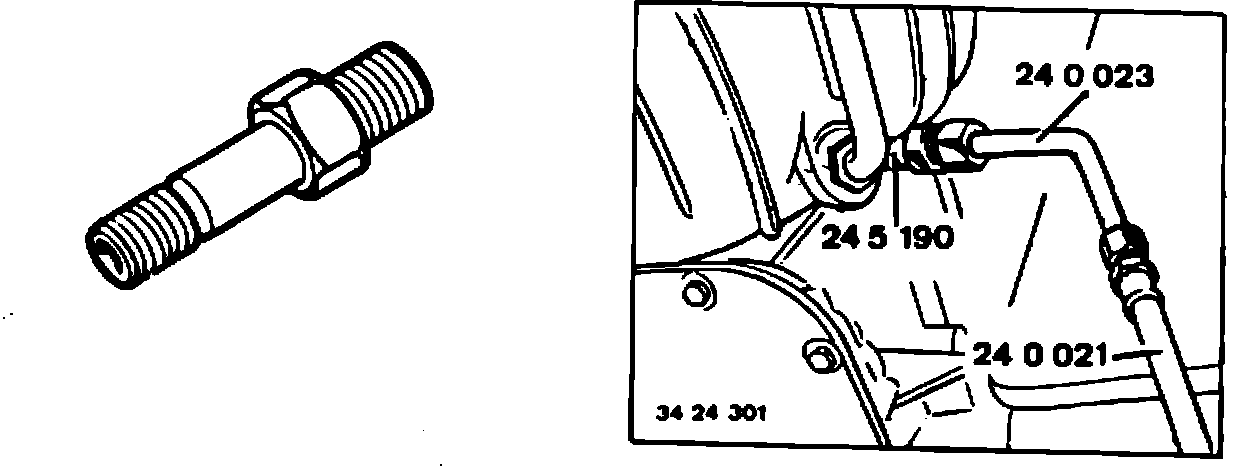

Adapter P/N 88 88 6 245 190 Introd. Price = $6.86
Used with 88 88 6 240 021, 88 88 6 240 023, and 88 88 6 133 061 to check main pressure.

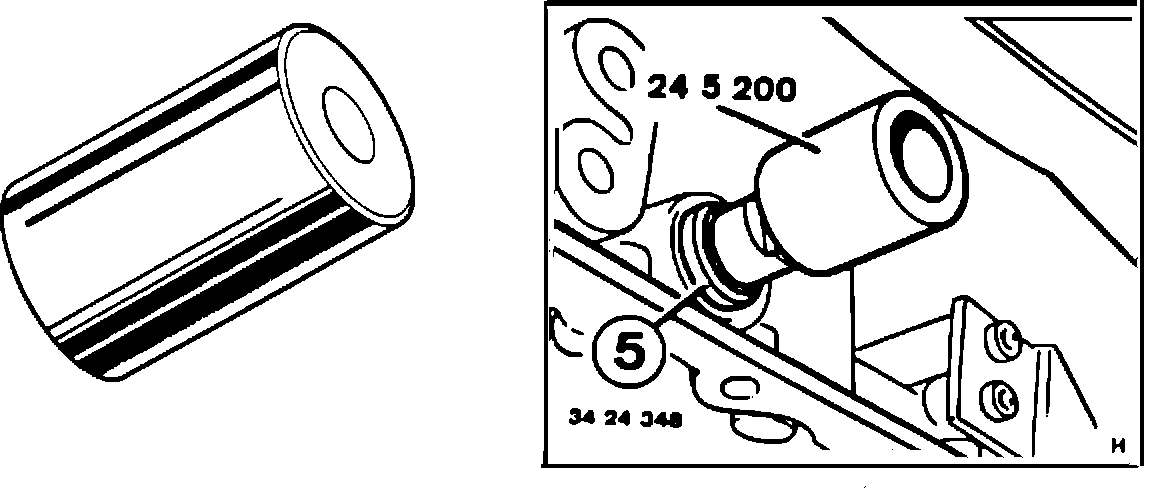

Driving Mandrel P/N 88 88 6 245 200 Introd. Price = $4.73
For radial sealing washer on shift lever shaft.
