Audio - Static Noise When Driving Over Bumps

Group 65
Radio and Accessories

Bulletin Number
65 02 91 (3223)

Woodcliff Lake, NJ
April 1991
Service Engineering


SUBJECT:
Static Noise on AM/FM Bands When Vehicle is Driven over Bumps

MODELS:
All equipped with 1991 model Alpine radio

Situation:
In rare cases, the antenna connection on 1991 Alpine radios may loosen.

If this occurs, driving over bumps may produce static noise through the speakers with the radio tuned to an AM or FM station.

Correction:

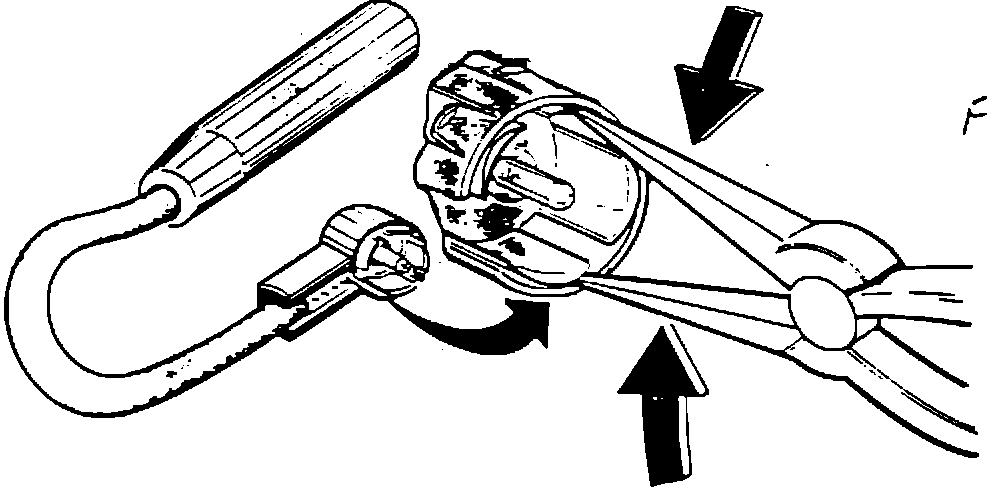

Use needle-nose pliers to slightly push in and tighten the 4 ground tab contacts to obtain a firmer contact between the antenna cable and the radio. Refer to illustration.






Also, slightly spread the ends of the center contact with a tool (such as a knife blade, center punch) in order to widen this contact and improve the connection. Refer to the illustration.



Warranty Status:
Covered under the terms of the BMW New Car Limited Warranty of 4 Years/50,000 Miles.


Defect code:
65 21 00 44 A5

Labor operation:
65 11 030 Main Work
65 11 530 Associated Work

Labor allowance:
Per Flat Rate Manual, applicable model

Note:
The following explanations will spell out the correct use of the work times.

Main Work:
Use this time when the only repair performed is the listed warranty repair.

OR


Associated Work:
Use this time when other repairs or services are performed along with the listed warranty repair.

Under no circumstances should both work times be claimed. Attempts to claim both times will result in an unnecessary delay in claim processing and payment.


Any questions regarding warranty coverage should be discussed with your District Service Manager.
