EC(Tm) Mirror Replacement




EC(TM) Mirror Replacement

1. If mirror wiring checks OK and mirror does not operate, replace mirror.
^ Disconnect the electrical connector.

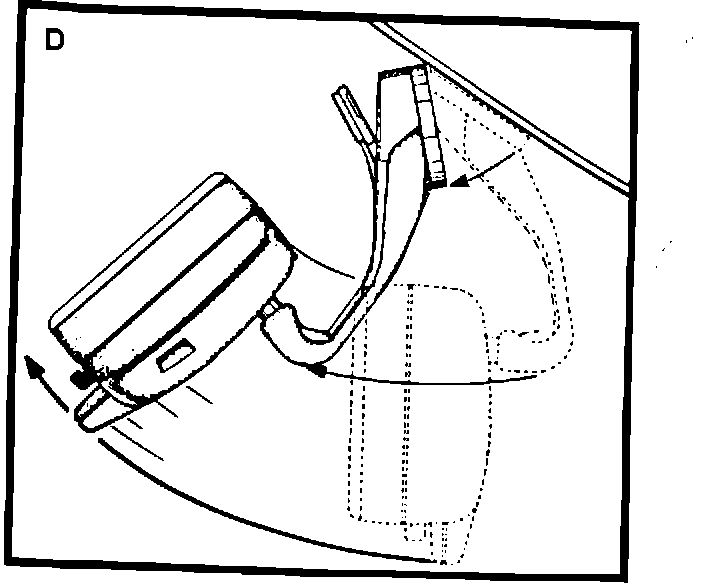

^ Remove mirror from the windshield button by pulling the mirror foot directly toward you at a 90-degree angle from the windshield (diagram D).

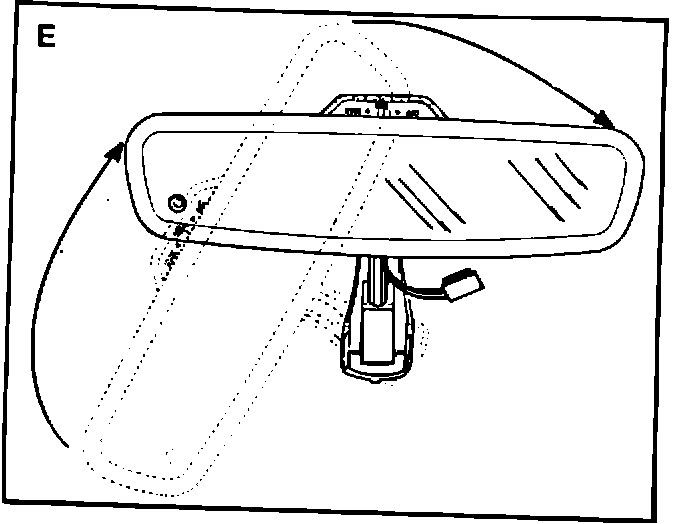

2. Install replacement mirror by placing mirror foot over windshield mounting button and rotating down 30-degrees to lock into proper position (diagram E). Reconnect wiring harness connector in mirror bracket base and test mirror operation.

Replace the wire cover.
