Testing EC(Tm) Mirror Operation

1. The vehicle ignition switch must be in the ON/RUN position.
2. The OFF/MIN/MAX sensitivity switch on the mirror must be in the MAX position.
3. Test the operation of the EC(TM) Mirror by simulating glare as follows:

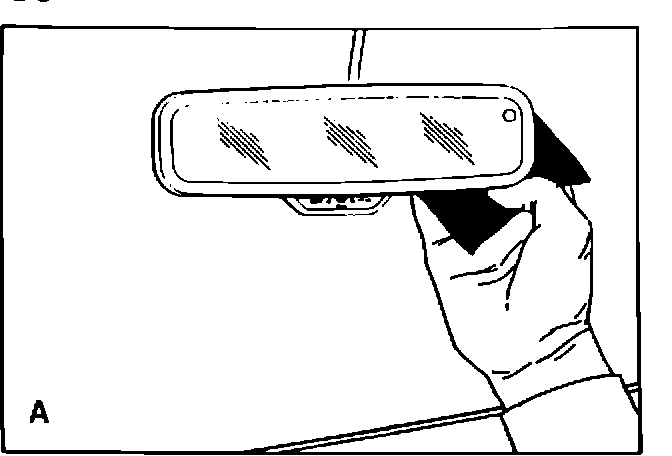

a. In full daylight conditions, cover the forward facing sensor (located on the right side of the mirror back) with a dark cloth or other piece of opaque material (Diagram A). Hold the dark cloth over the sensor until you notice the mirror start to darken.
b. Remove the cloth and the mirror should return to the clear state. (Note: In the low ambient light of a large workshop the mirror may not return to full clear).
c. Repeat steps a. and b. serveral times to make sure the mirror operates correctly.
d. With the mirror in the dark, non-reflective stage, place the gear selector into reverse. The mirror should return to the clear stage.
e. Repeat step d. to make sure reverse override operates correctly.
