Engine - M42 Description
>>

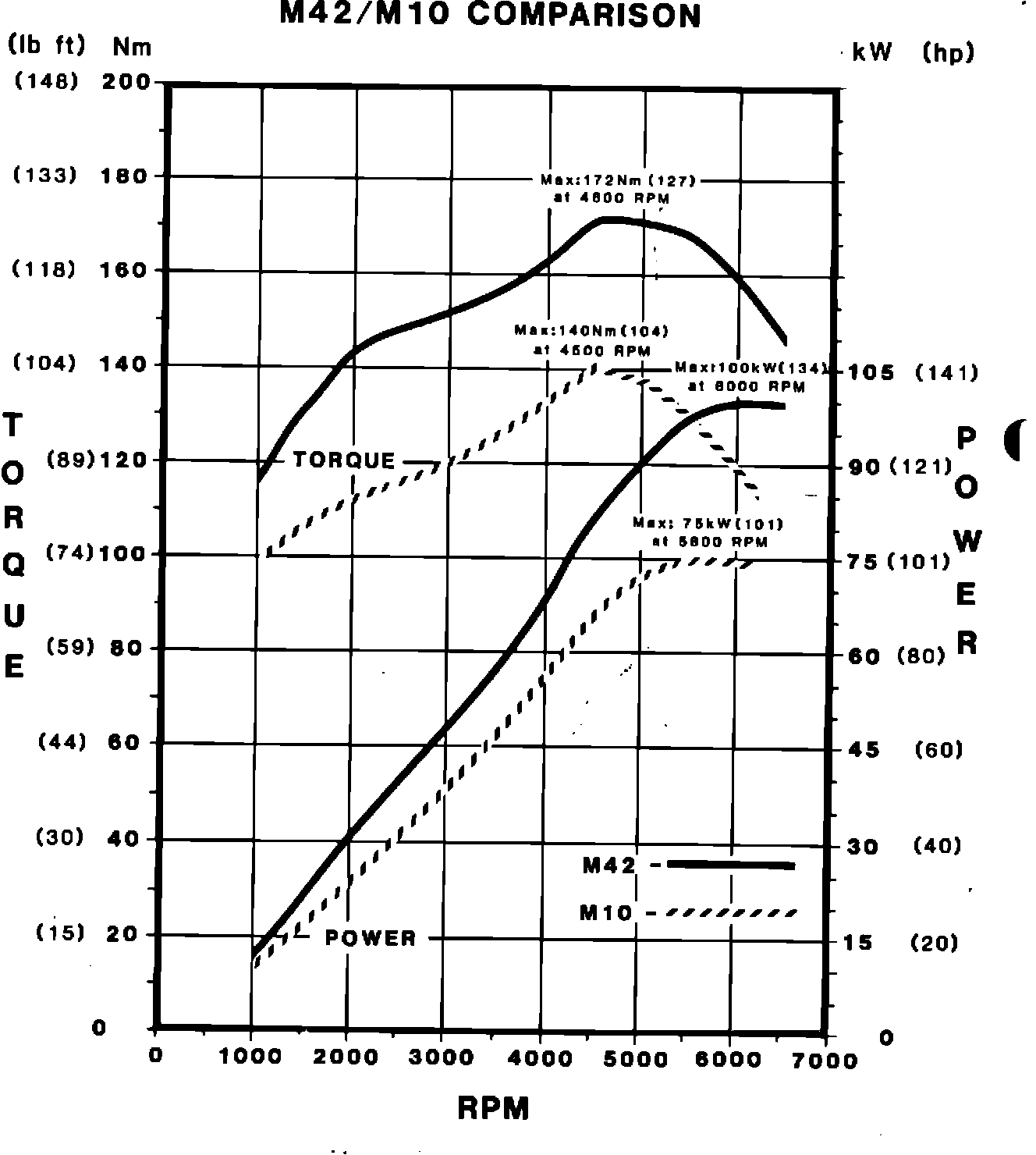

M42/M10 Comparison
M42/M10 Comparison
M42/M10 COMPARISON:
TECHNICAL DATA AND CUTAWAY VIEW

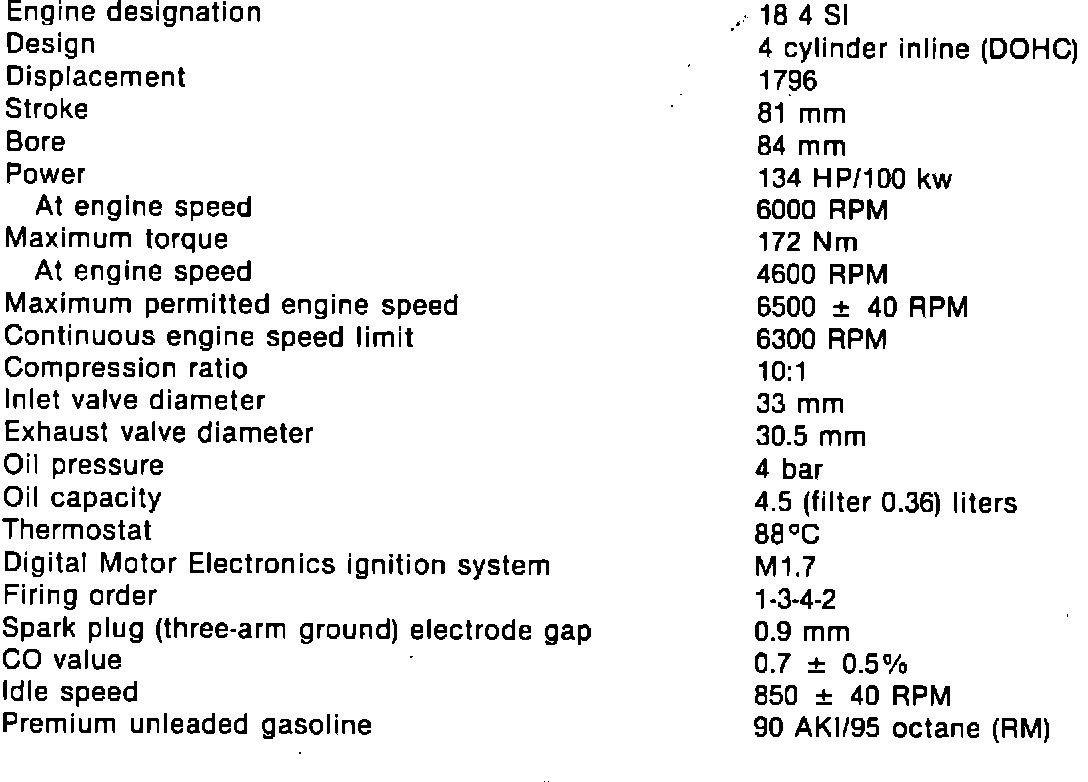

Technical data:

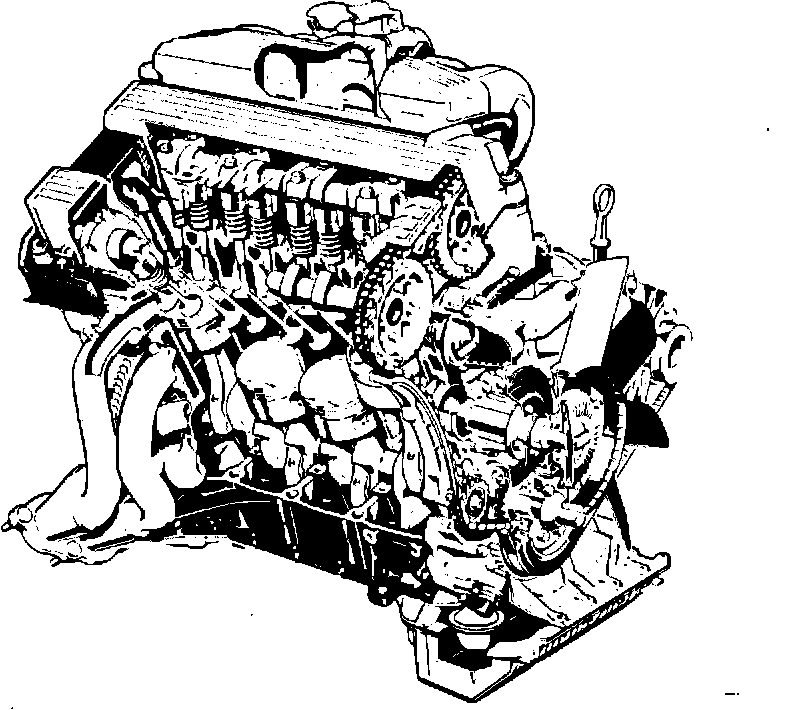

Partial cutaway view of engine
