Horn Contact - Squeaks
90bmw14 Group 61 Chassis - ElectricalBulletin Number 61 04 90 (3082)
Woodcliff Lake, NJ June 1990 Service Engineerlng
SUBJECT: Contact Ring/Horn Contact Causing Noise
MODELS: All
Complaint: Horn contact squeaks.
Correction: Coat the contact ring evenly with 0.5 gram of copper paste lubricant, P/N 81 22 9 400 794.

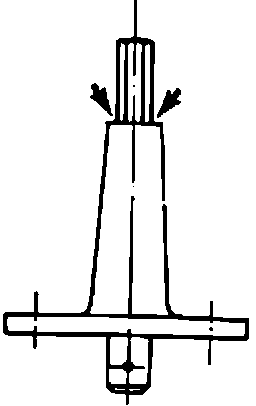

Grease the horn contact between the contact body and the guide tube (arrows) with 0.5 gram of the same paste lubricant.
Note: Push the contact body into the guide tube several times while applying lubricant to ensure sufficient lubrication.
Warranty
Status: Covered under the terms of the BMW New Car Limited Warranty of 3 Years/36,000 Miles.
Defect code: 32 33 04 39 00
Labor operation: 32 33 000 Remove and install steering wheel plus: 32 34 500 if airbag equipped
Labor allowance: Refer to Flat Rate Manual
Any questions regarding warranty coverage should be discussed with your District Service Manager.
