Parts and Warranty Information

Parts Information:





The throttle housing kit can be ordered under BMW part number 13 54 1 739 263 which includes all of the necessary gaskets and mounting hardware.

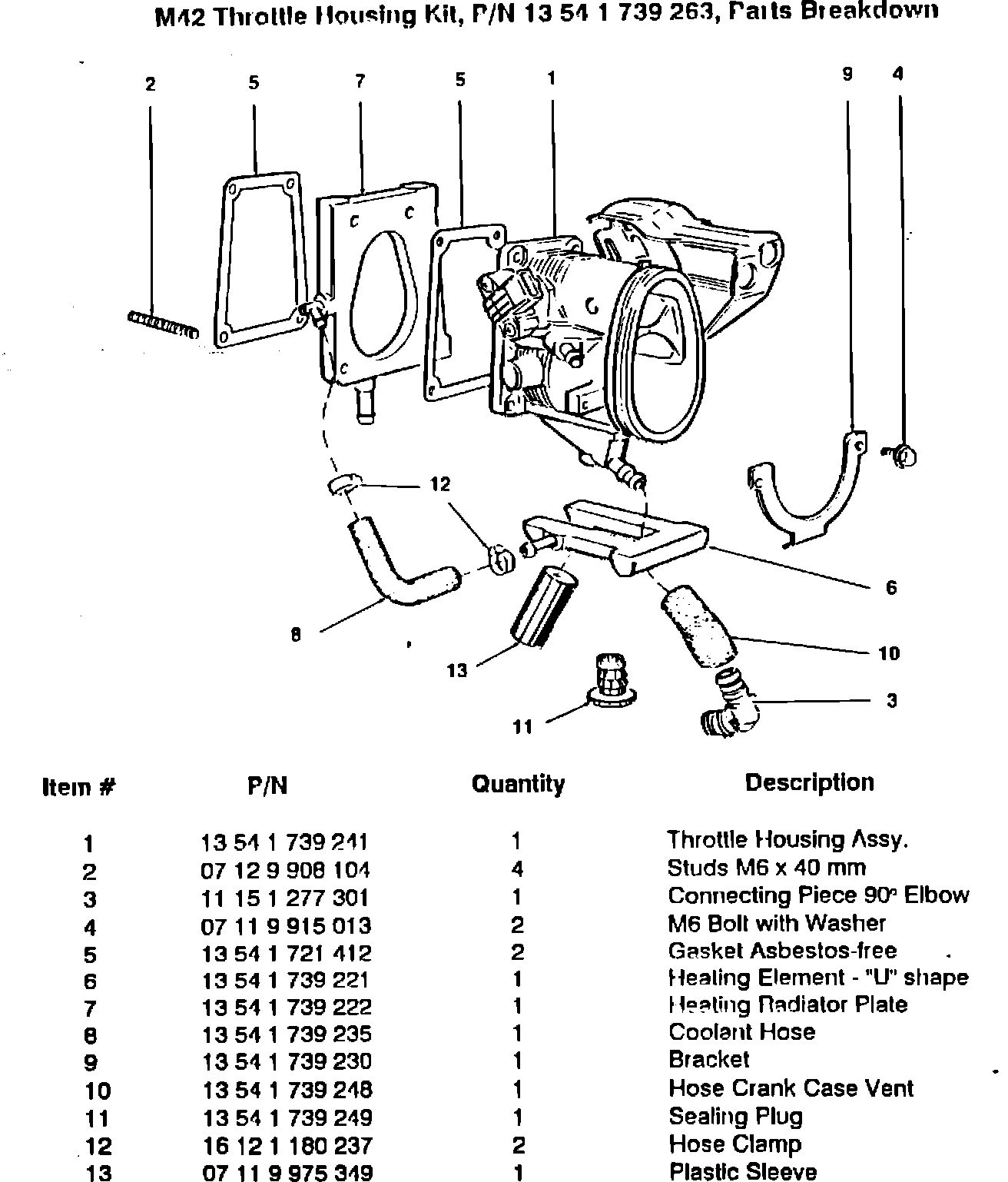

The Parts Breakdown list references the individual components included in the throttle housing kit and should be used when ordering individual components if repairs become necessary.

Note:
Only install the complete throttle housing kit (part number 13 54 1 739 263) for affected vehicles which have not yet had this campaign performed.



Warranty Status:

Reimbursement for the recall campaign will be provided through campaign entry.

Special defect code: 00 13 01 22 00

Work package # 1 - Replace throttle housing.

Labor: 12 FRU

Parts:
Part Number Qty. Description

13 54 1 739 263 1 Throttle housing kit
