Tools - Fuel Injection Leakage Tester

90bmw16 Group 04 Tools and Equipment
Bulletin Number 04 17 90 (3155)
Woodcliff Lake, NJ November 1990 Service Engineering
SUBJECT: Fuel Injection Leakage Tester

MODEL: All

Situation: A special tool has been developed that will permit BMW dealers to test for leaking injectors (see Long Cranking Times bulletin S.I. 13 08 90 (3096).

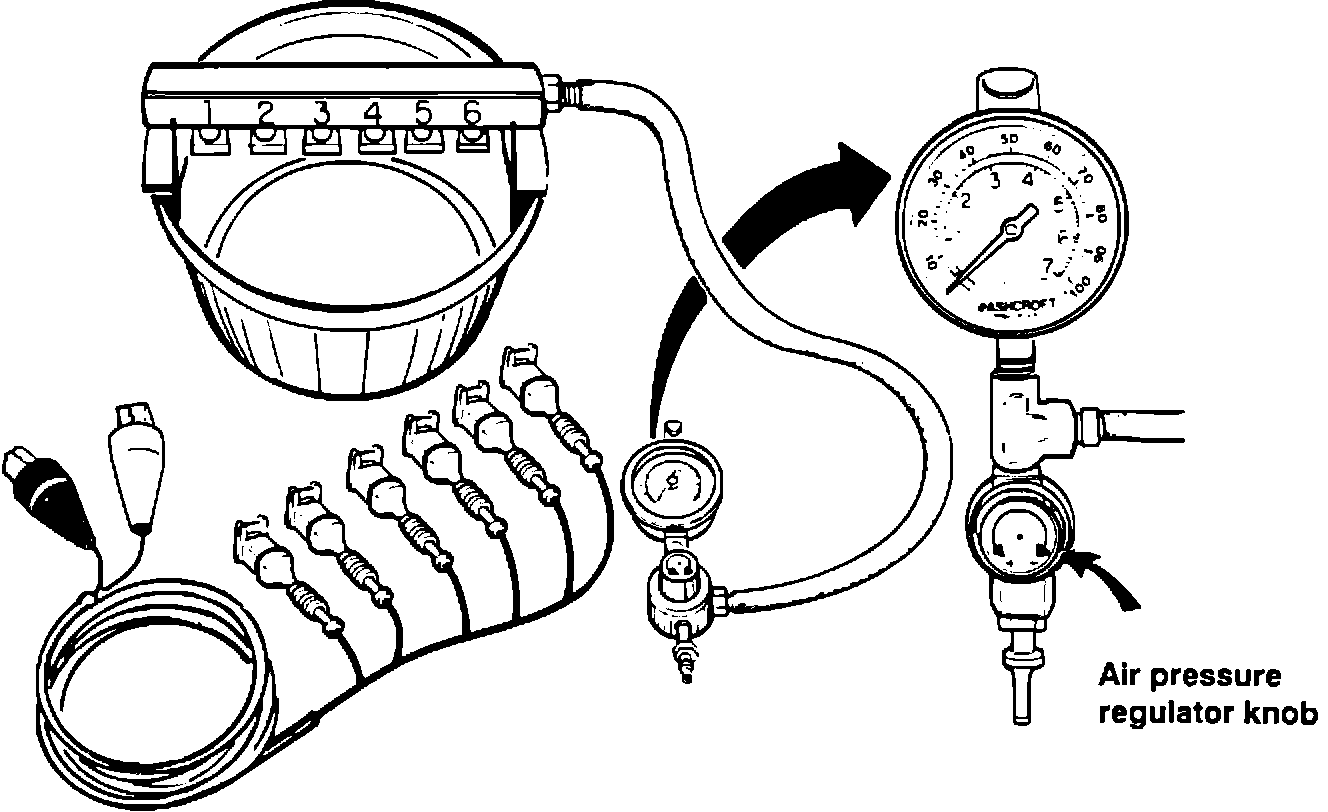

Fuel Injection Leakage Tester P/N 88 88 5 000 362 Introductory Price = $245.66
This tool will be sent to all BMW automotive dealers under the Automatic Tool Shipment Program. Additional kits may be purchased through your Parts Distribution Center.

List of spare parts for the Fuel Injection Tester:

Description Part Number

Bowl 88 88 5 000 715
Rack 88 88 6 136 205
Harness 88 88 6 136 206
