Blower Motor: Service and Repair

Removal:
- Disconnect battery ground lead.





- Pull off rubber strip (1).
- Cut off wire straps (2).
- Unscrew bolts (3).
- Lay cover (4) aside.

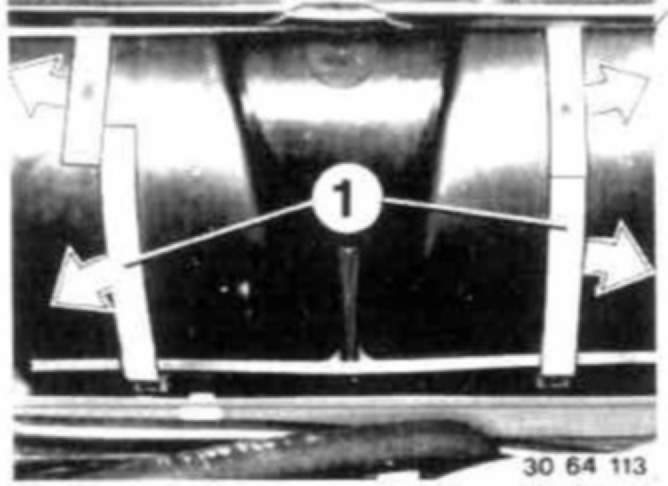

- Open retaining straps (1) and swing aside.

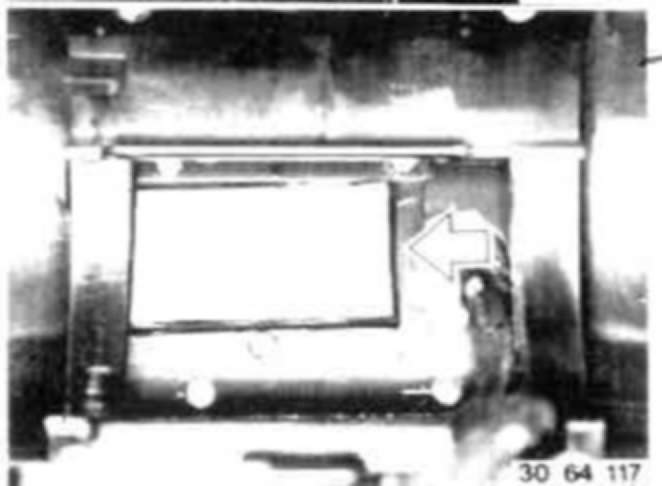

- Remove cover.

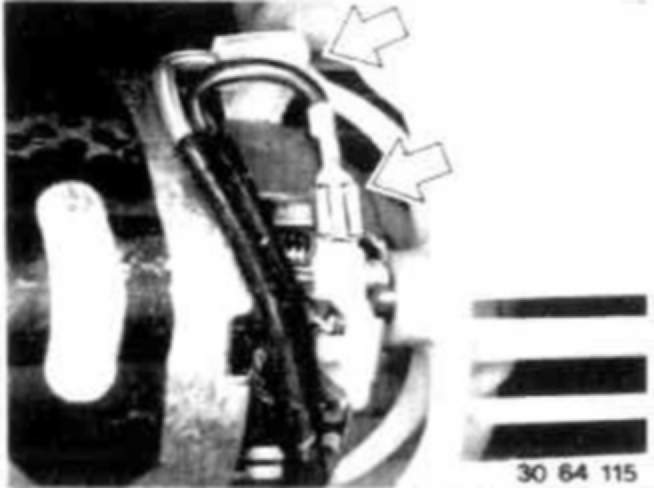

- Pull off both wire plugs.

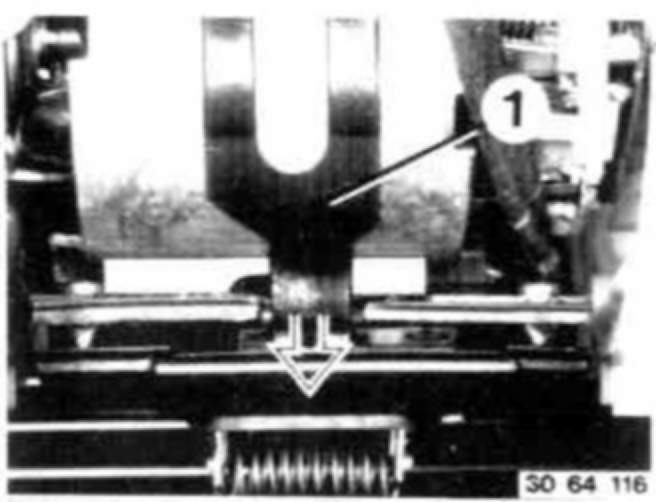

- Disengage clamp (1).
- Lift out fan motor with fan.





CAUTION: Be careful not to damage the air flap.





- Check code number (1) to verify correct replacement part.

CAUTION: Do not remove or turn fan wheels on motor shaft since motor and fan wheels were balanced in assembled state.
