Home >> BMW >> 1992 >> 318i Convertible (E30) L4-1796cc 1.8L DOHC (M42) >> Repair and Diagnosis >> Heating and Air Conditioning >> Condenser Fan Motor Relay >> Locations

Condenser Fan Motor Relay: Locations

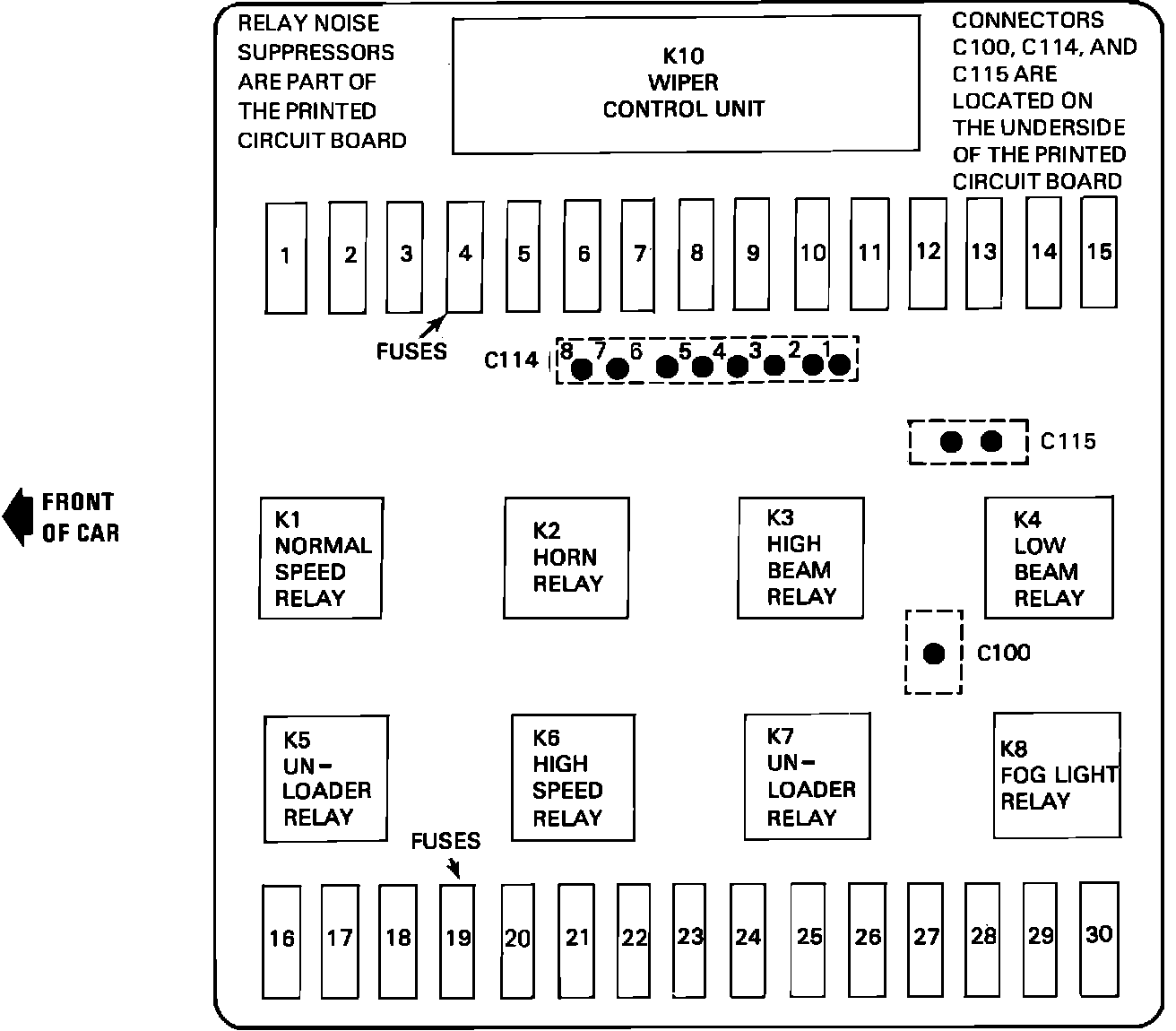

Fuse And Relay Positions In Distribution Box:





Fuse Assignments:
