Door Window/Handles/Locks - Supplementary Instructions

Group 51
Body Equipment



Bulletin Number
51 06 92 (3570)



Woodcliff Lake, NJ
May 1992
Product Engineering



SUBJECT:
New Repair Instructions

MODELS:
E36

Situation:
Enclosed are supplementary repair instructions for the door window on 2- door models and instructions for door handles and locks on 2 and 4-door models.

Action:
These supplements should be used until the next issue (3rd Edition) of the Repair Manual Microfiche is received.

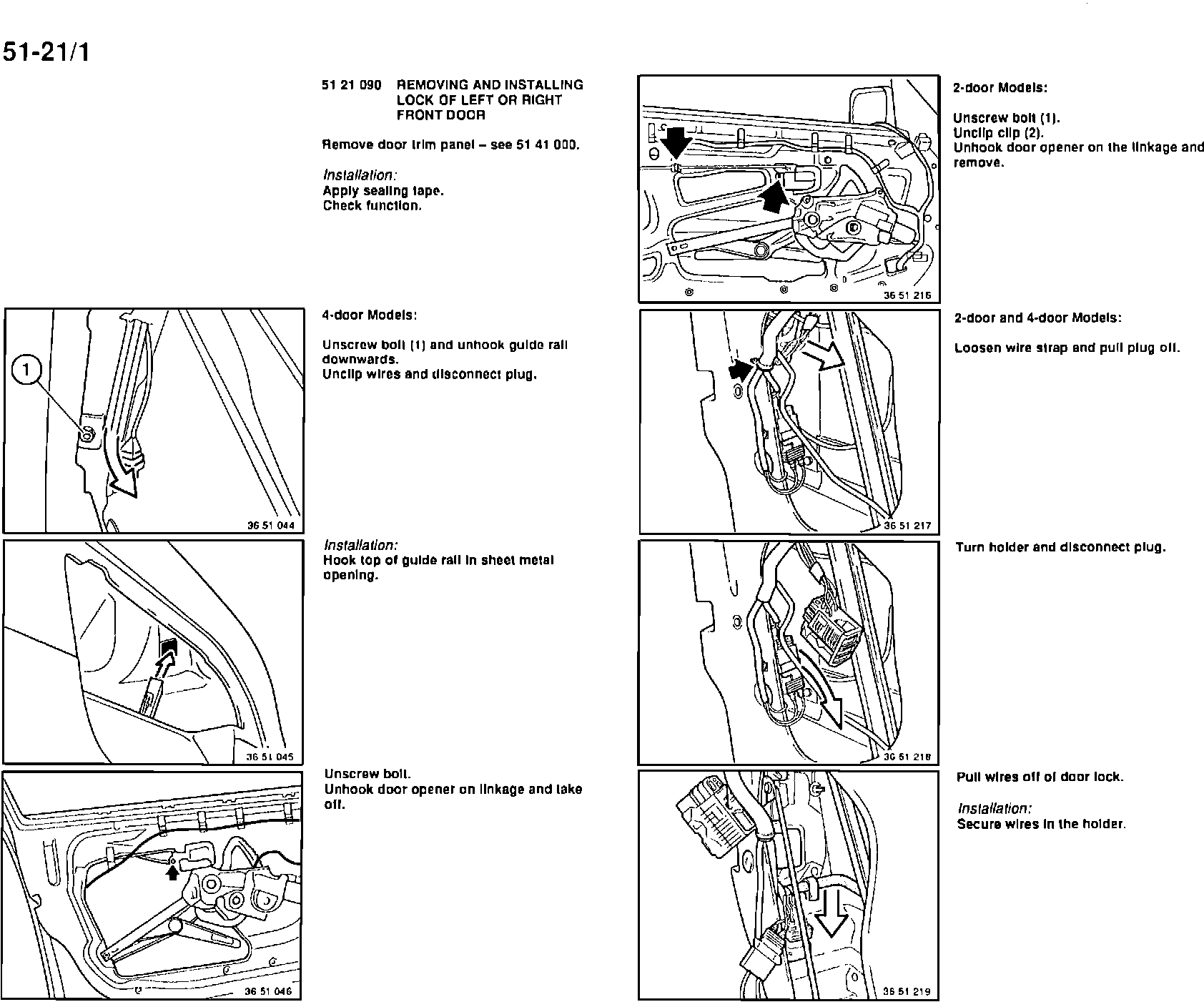

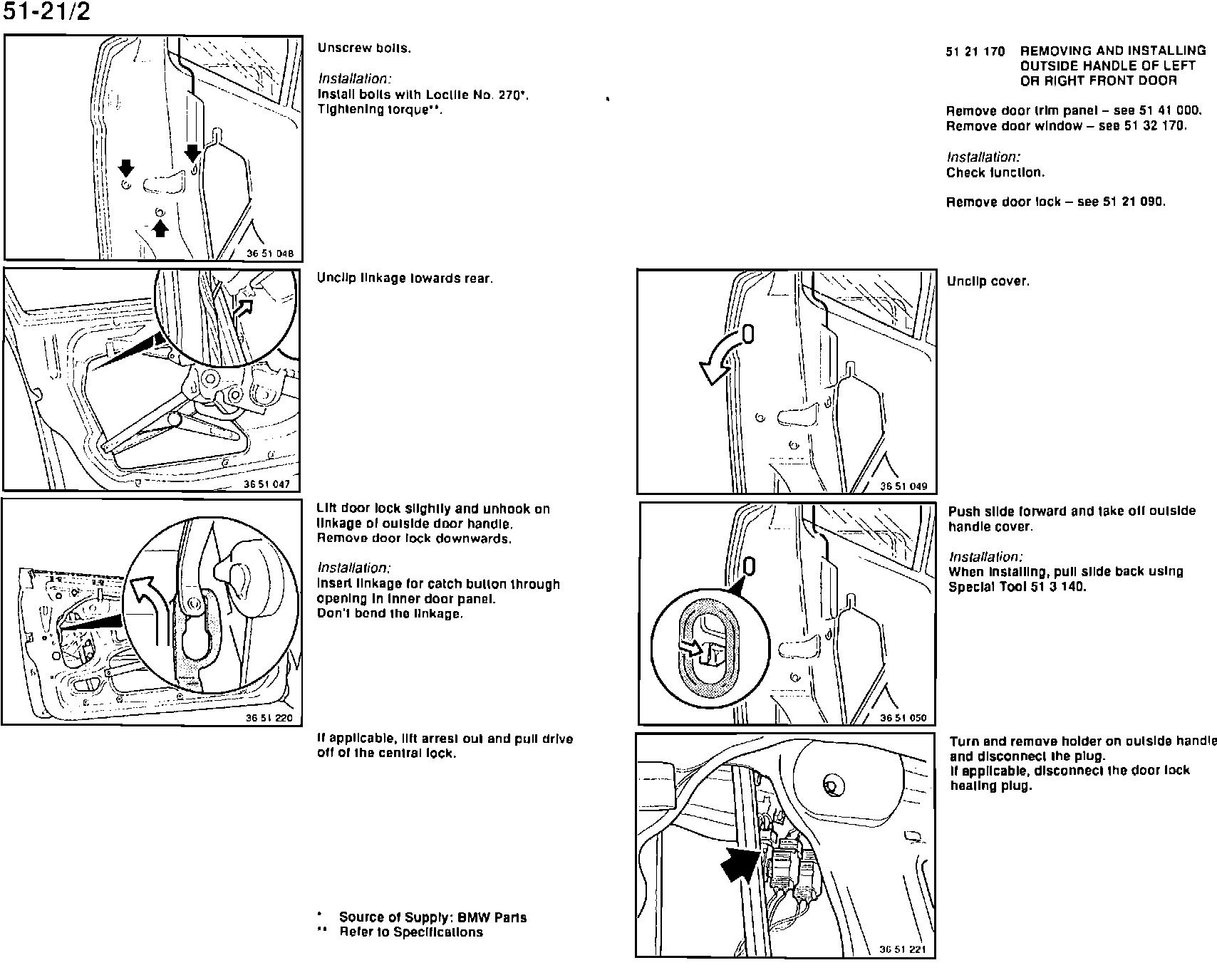

Removing and Installing Door Locks and Handles

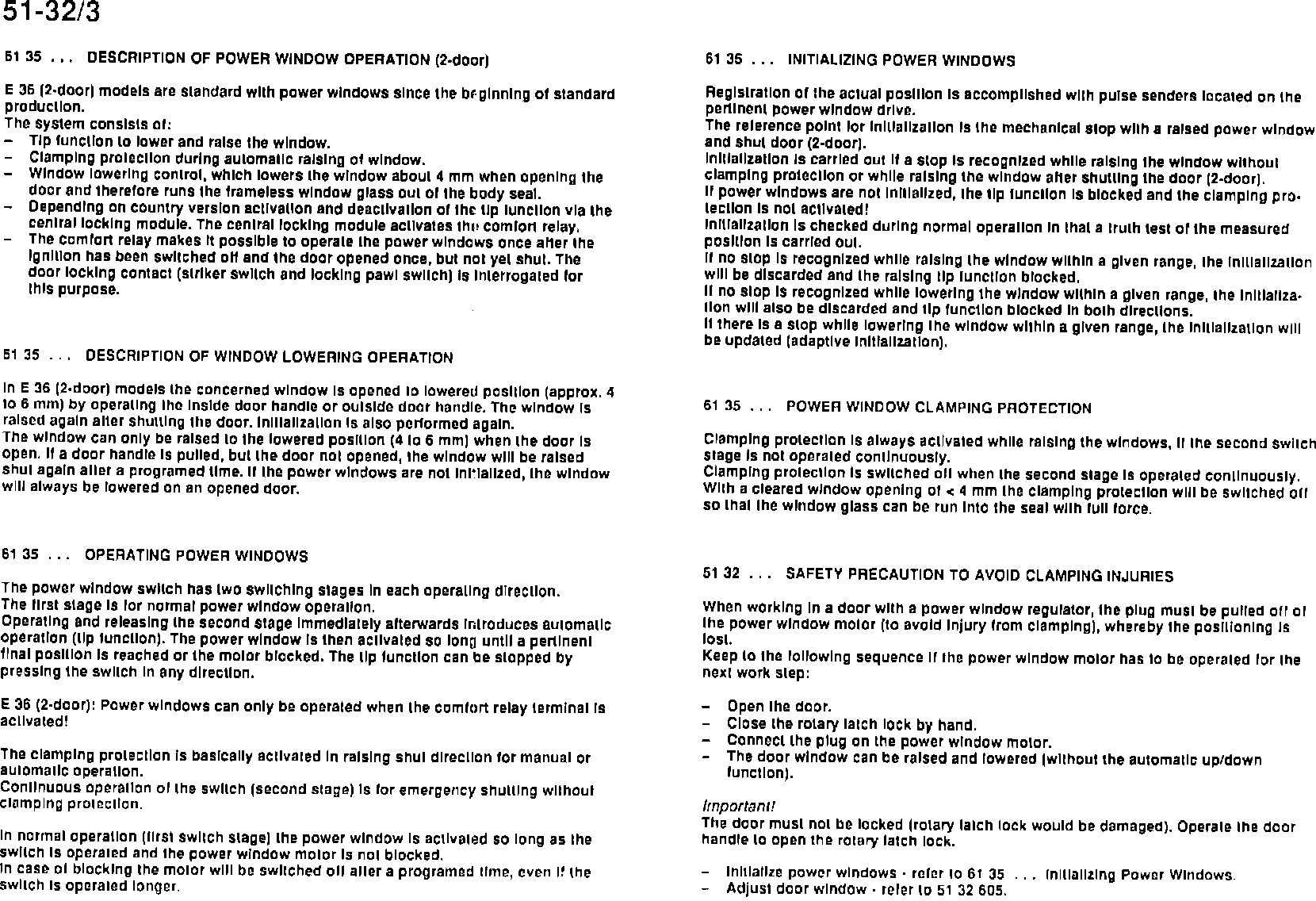

Description of Power Window Operation

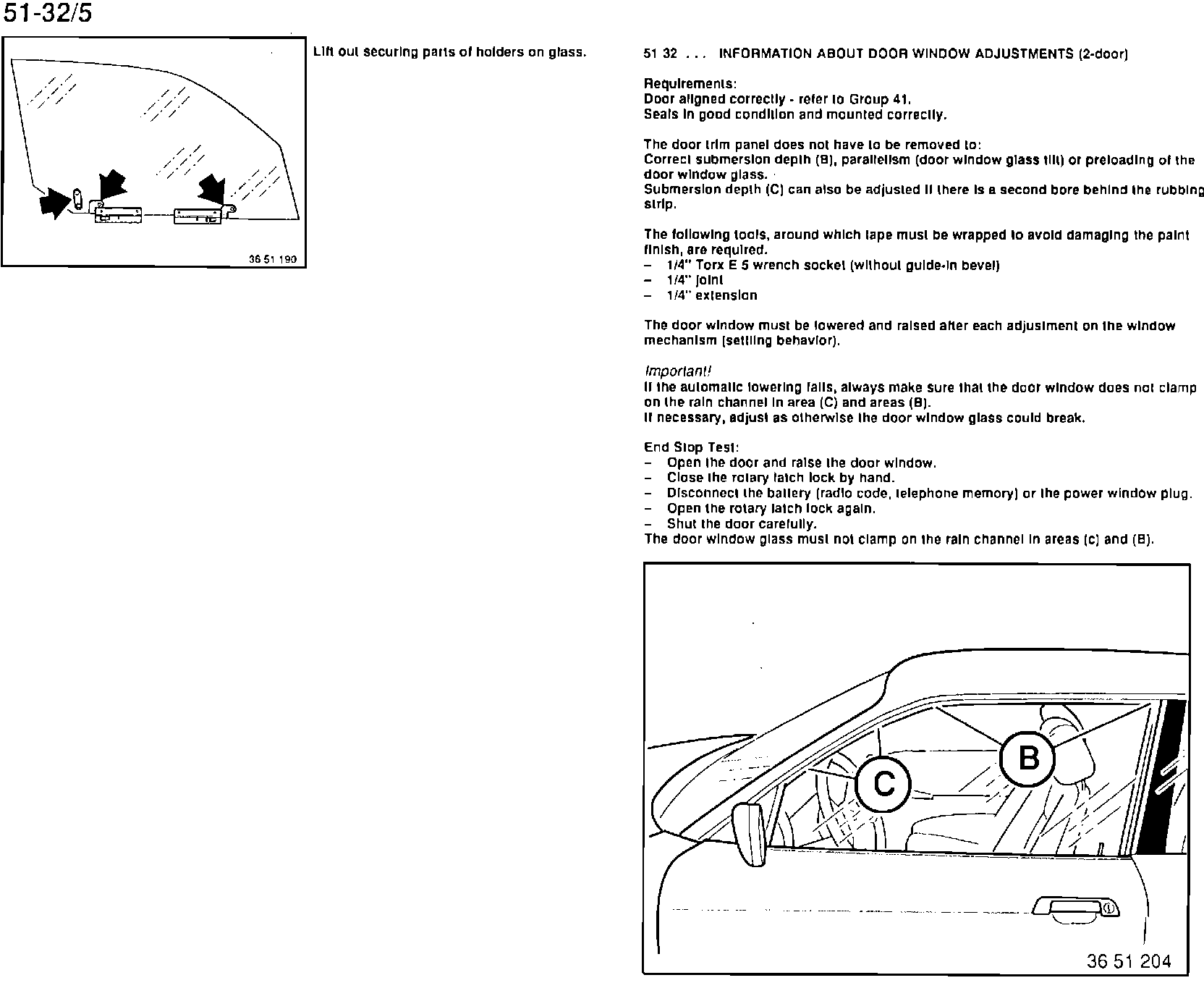

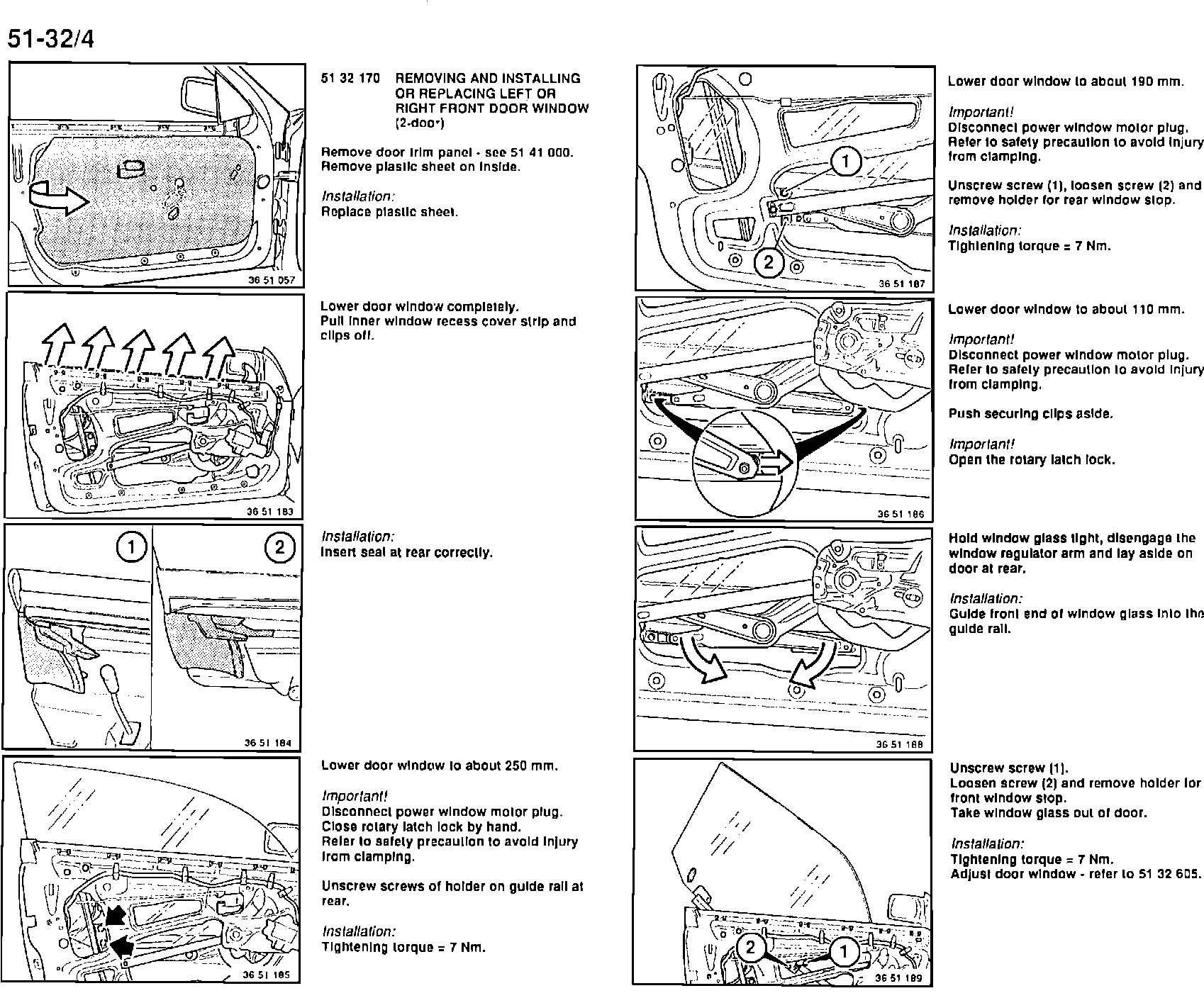

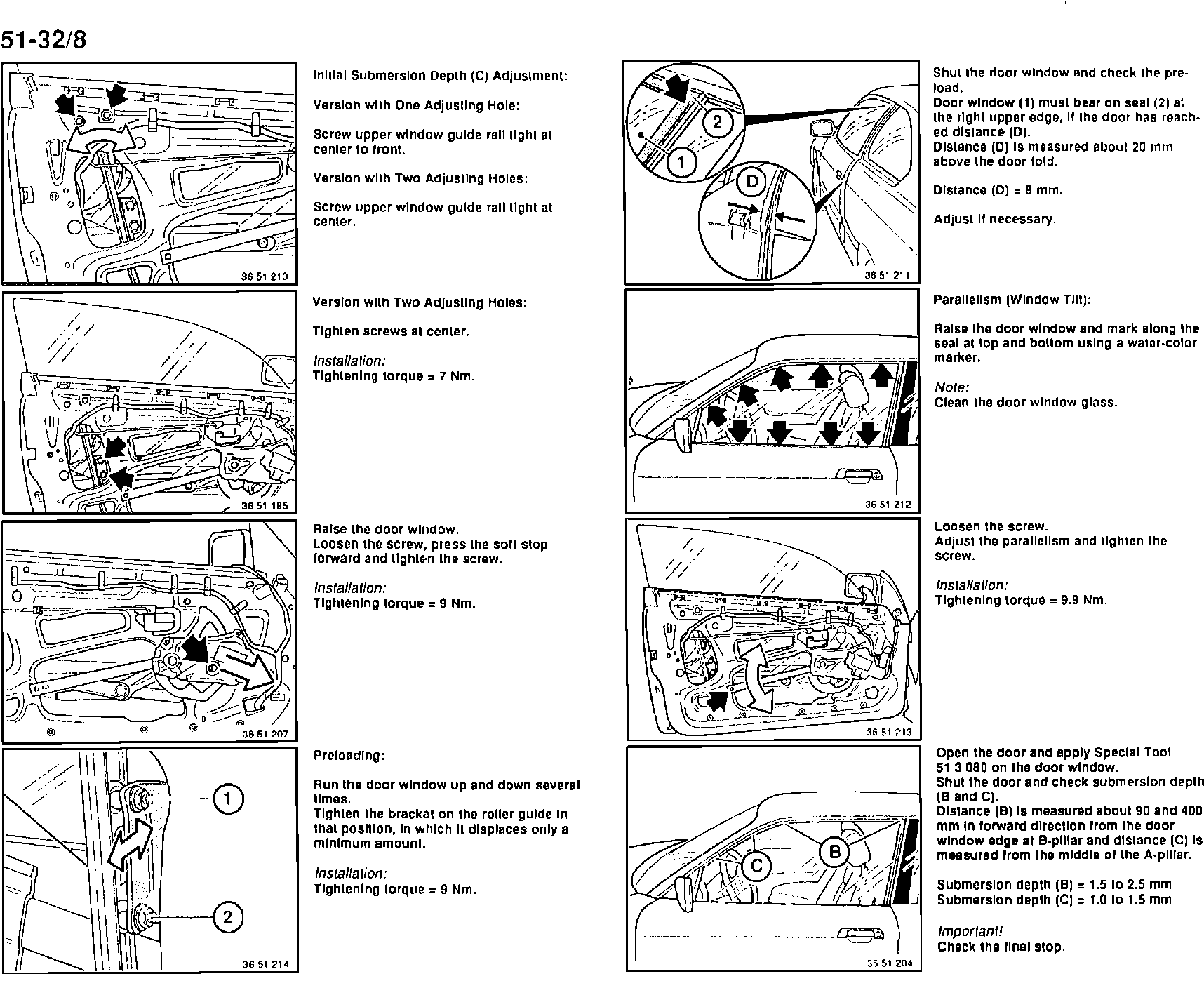

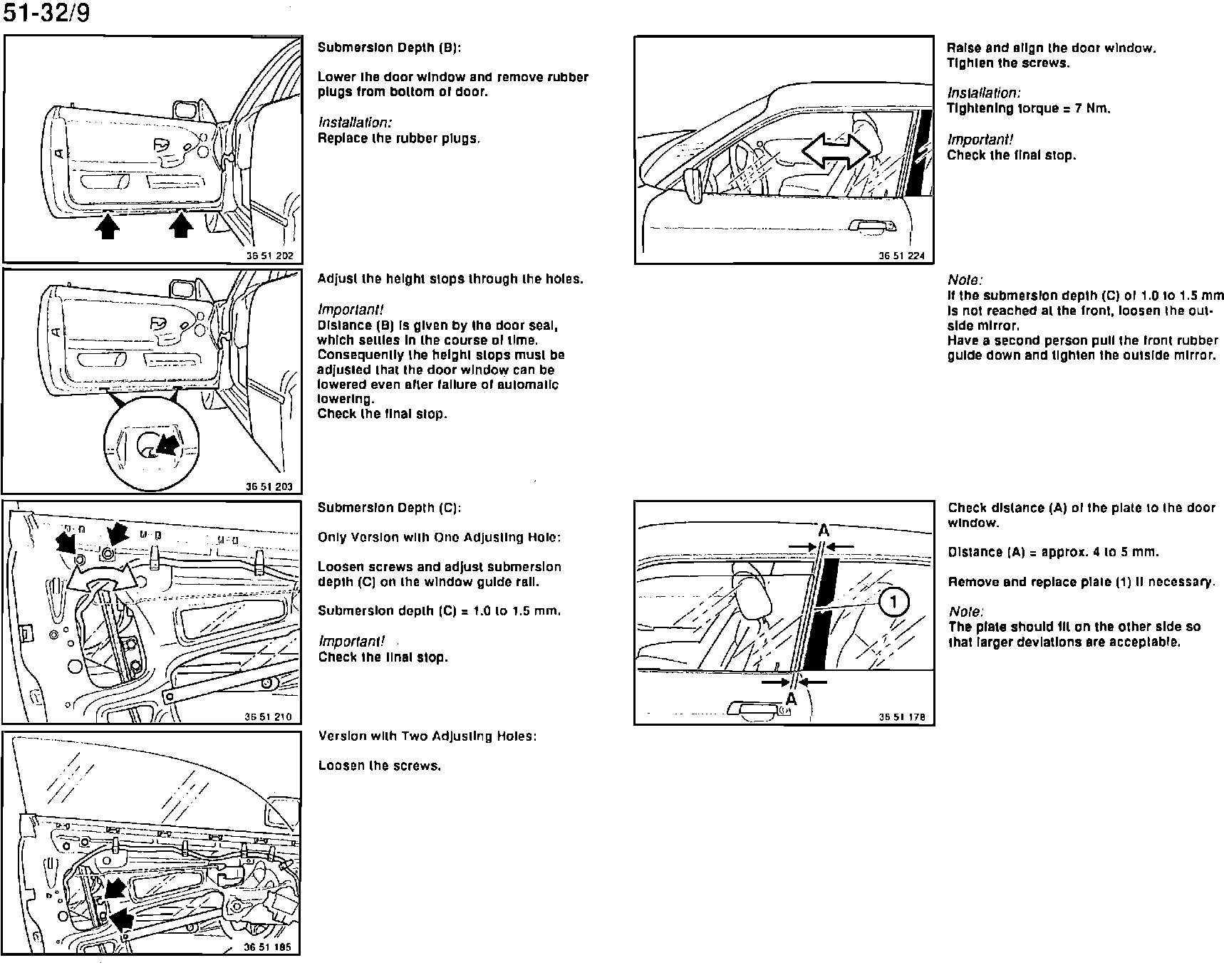

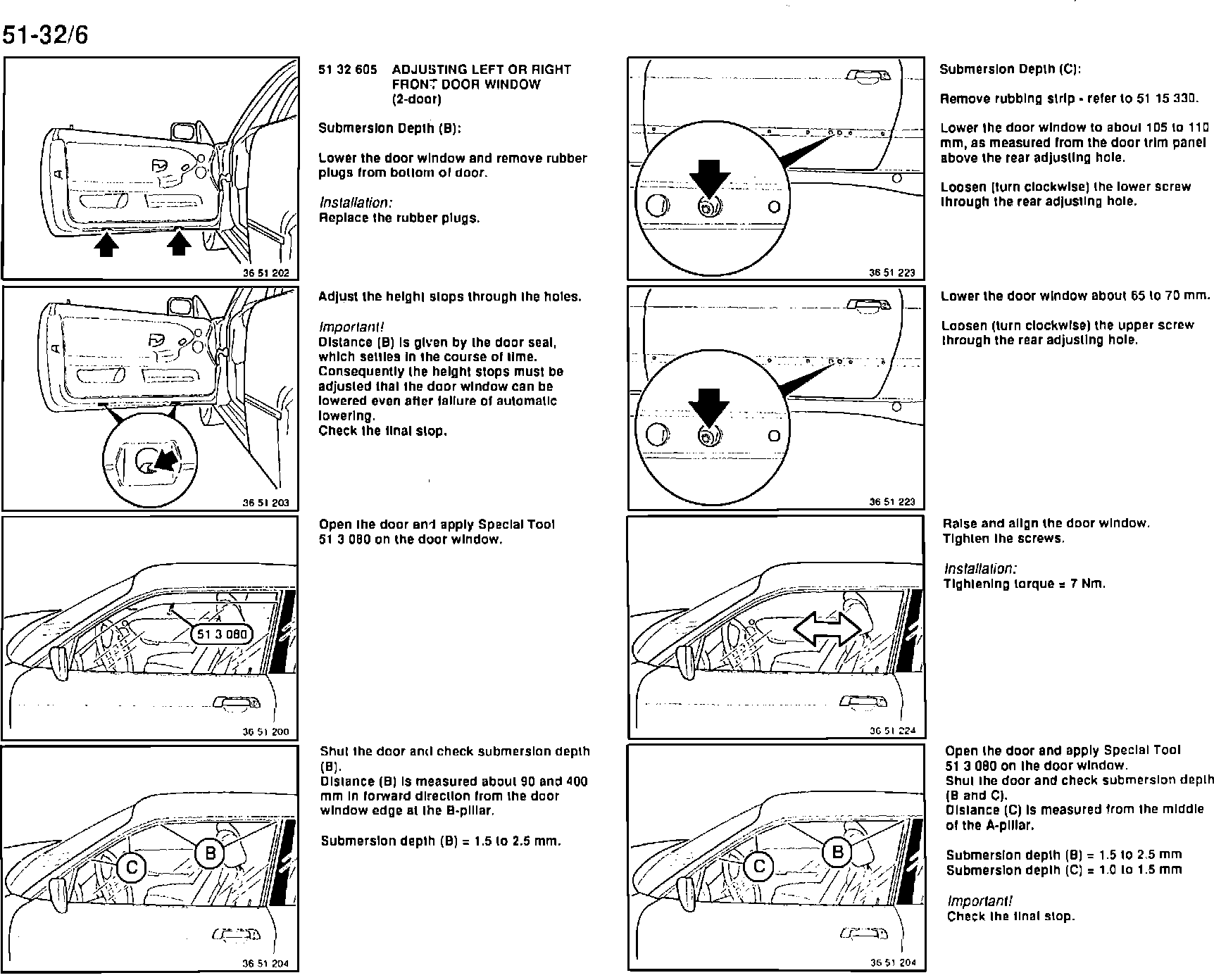

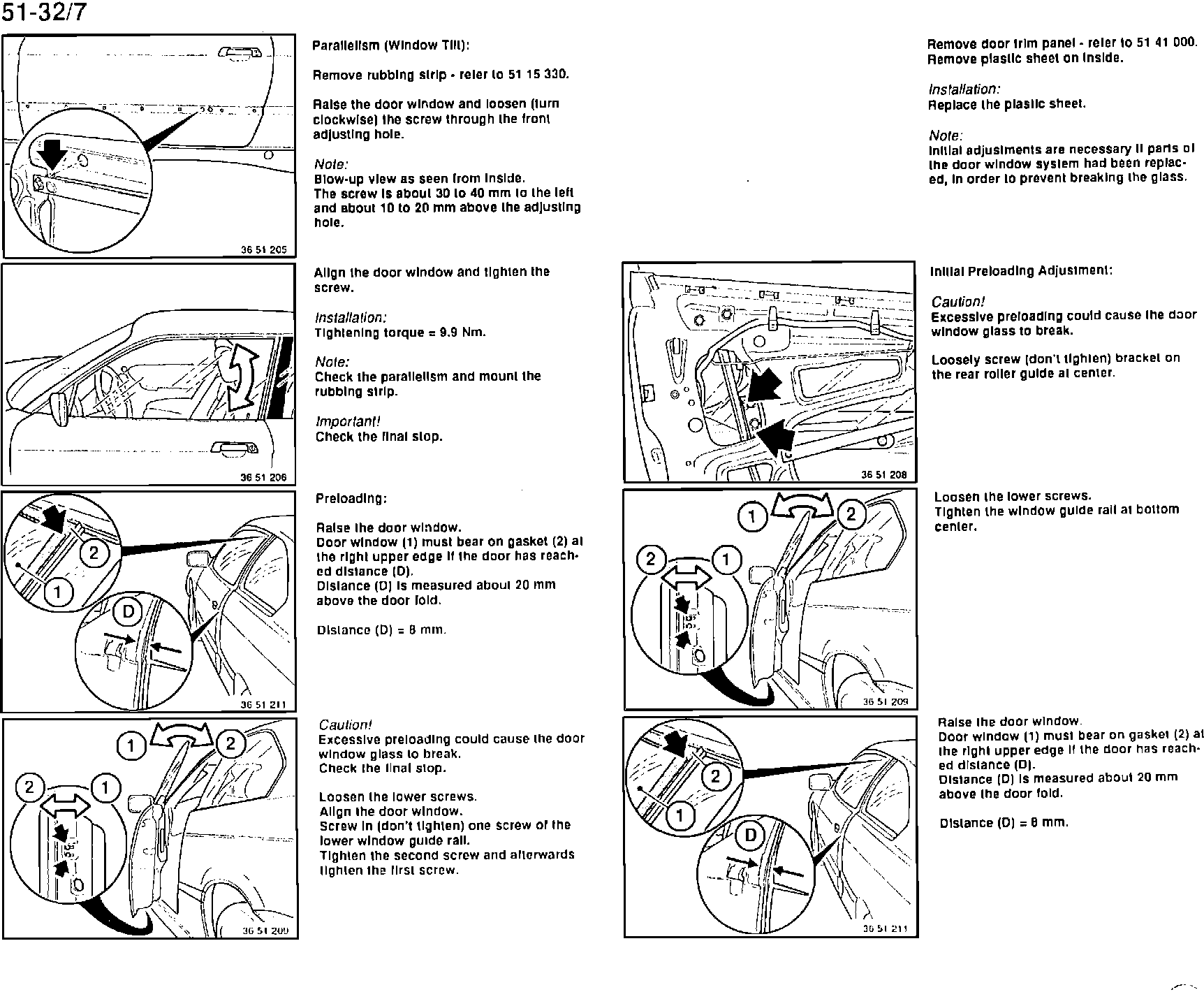

Removing and Installing of Door Windows
