Windshield - Revised Installation Procedure
Group 51Body Equipment
Bulletin Number
51 07 92 (3579)
Woodcliff Lake, NJ
June 1992
Product Engineering
SUBJECT:
Revised Windshield Installation Procedure
MODELS:
E36 2-door
Situation:
The windshield installation procedure for the E36/2 has been changed regarding the plastic spacer block in the lower center of the windshield.

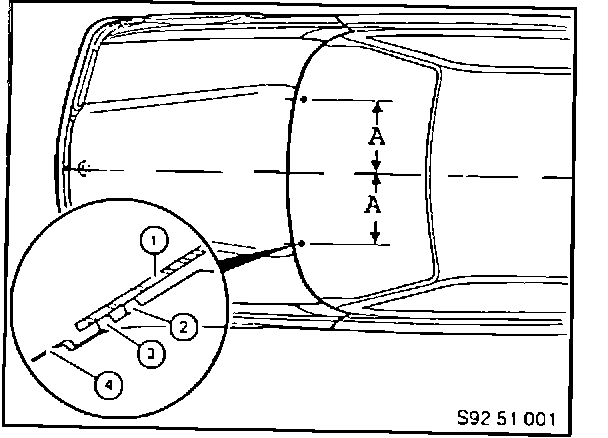

Whenever a windshield is removed and replaced, two elastic supports (part number 51 31 1 925 433) should be installed only as illustrated, rather than in the three locations shown in the Repair Manual.
1. Windshield
2. Elastic Support
3. Adhesive
4. Body
A = 350 mm
