Engine Control System

The table lists only components which, when malfunctioning, cause the "Check Engine" light to illuminate. After identifying the affected component or system, Signals NOT self-checked are:
^ Memory Power (Pin 26)
^ Run Bus Power (Pin 56)
^ Ignition Control (Pins 23,24,25,50,51,52)
^ Ref/RPM Signal (Pins 67 & 68)
^ P/N Inputs (Pin 65)
^ AC Compressor Control (Pin 48)
^ Grounds (Pins 6,28,34,55)

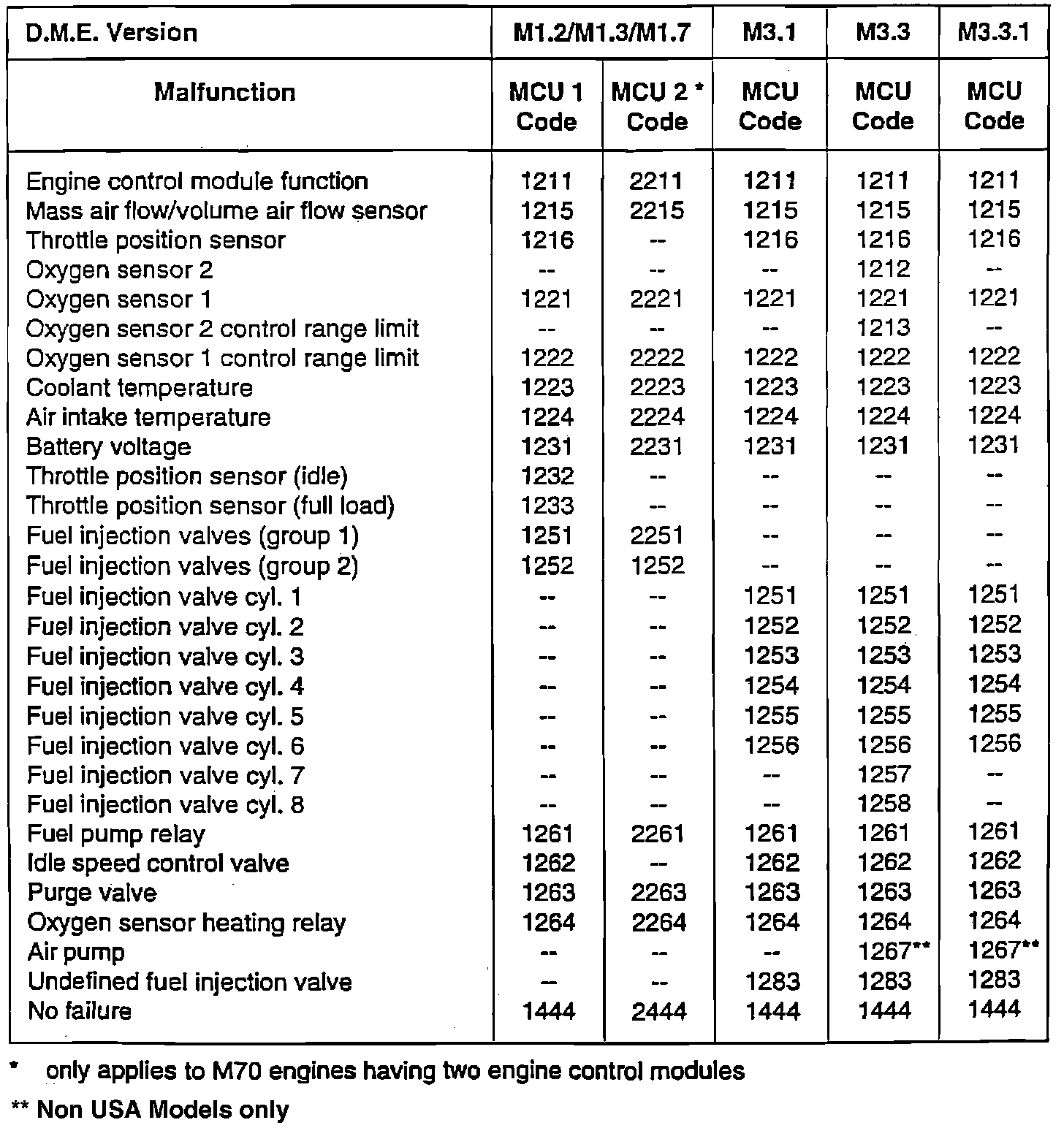

The fault code chart lists the various codes which can be displayed through the "Check Engine" light. After identifying the affected component or system, Manufacturer Code Charts

Failure Reference Chart:

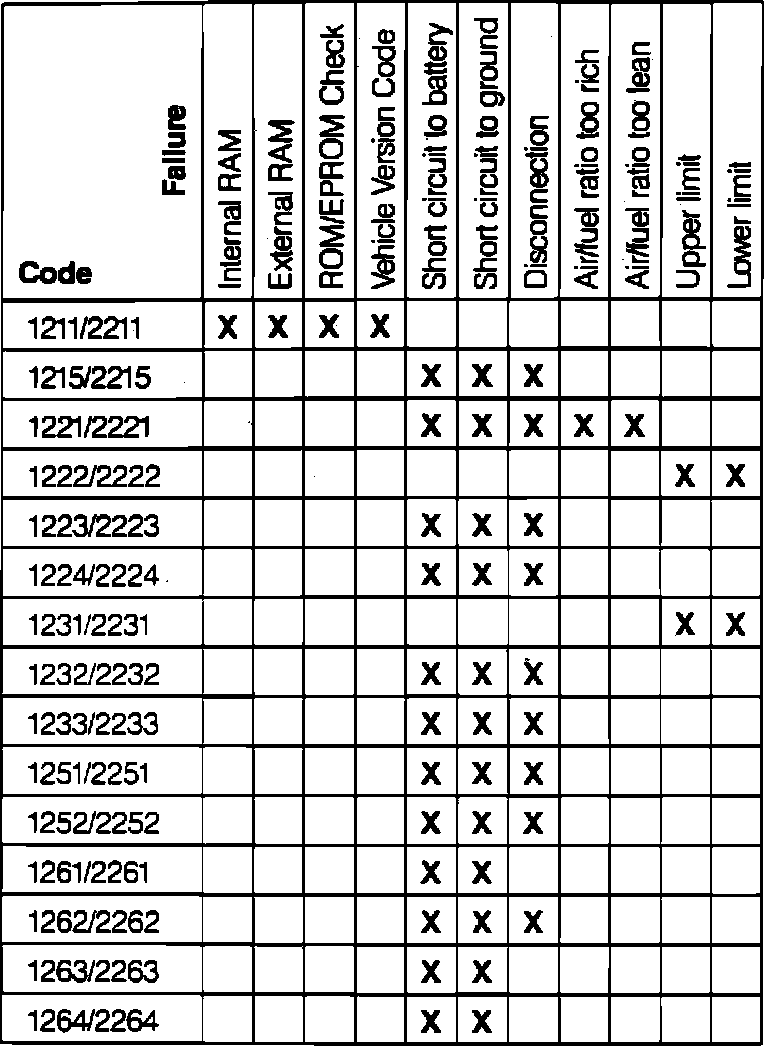

The failure reference chart lists the types of faults that will cause each code to set.
