Parking Brake Warning Switch: Service and Repair

Replacing Switch For Handbrake Indicator Light

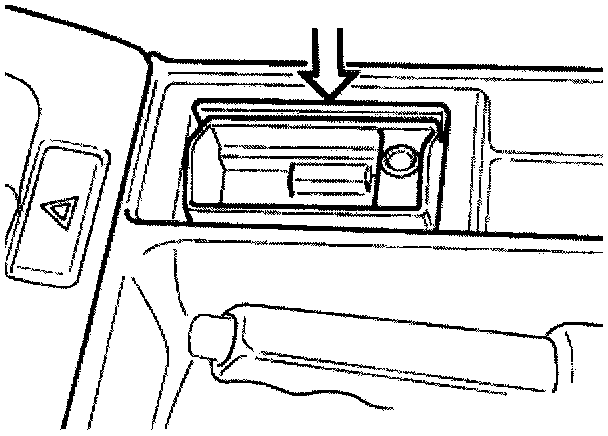

- Remove both ashtrays.

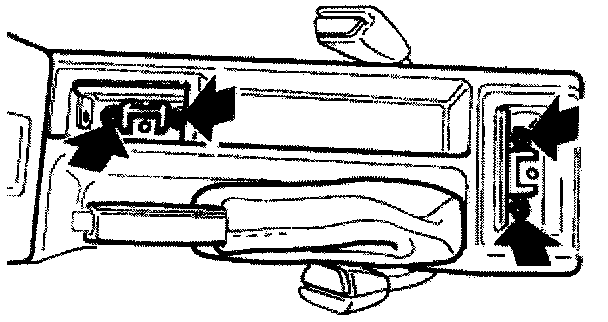

- Unscrew bolts.
- Remove center console.




- Disconnect connector.

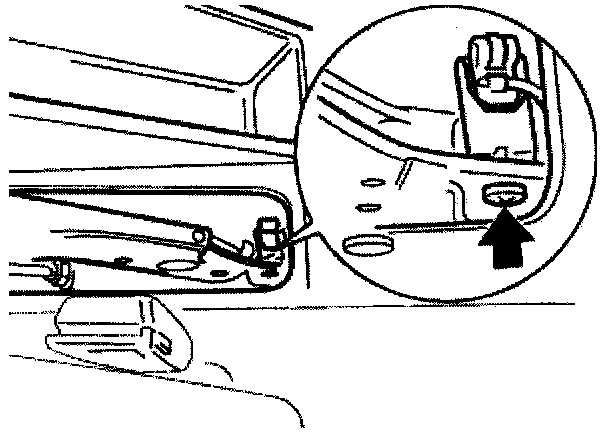

- Unscrew screw.
- Remove switch.
- Adjusting: Switch must be operated between the first and second catch.
