Brake Application Monitoring

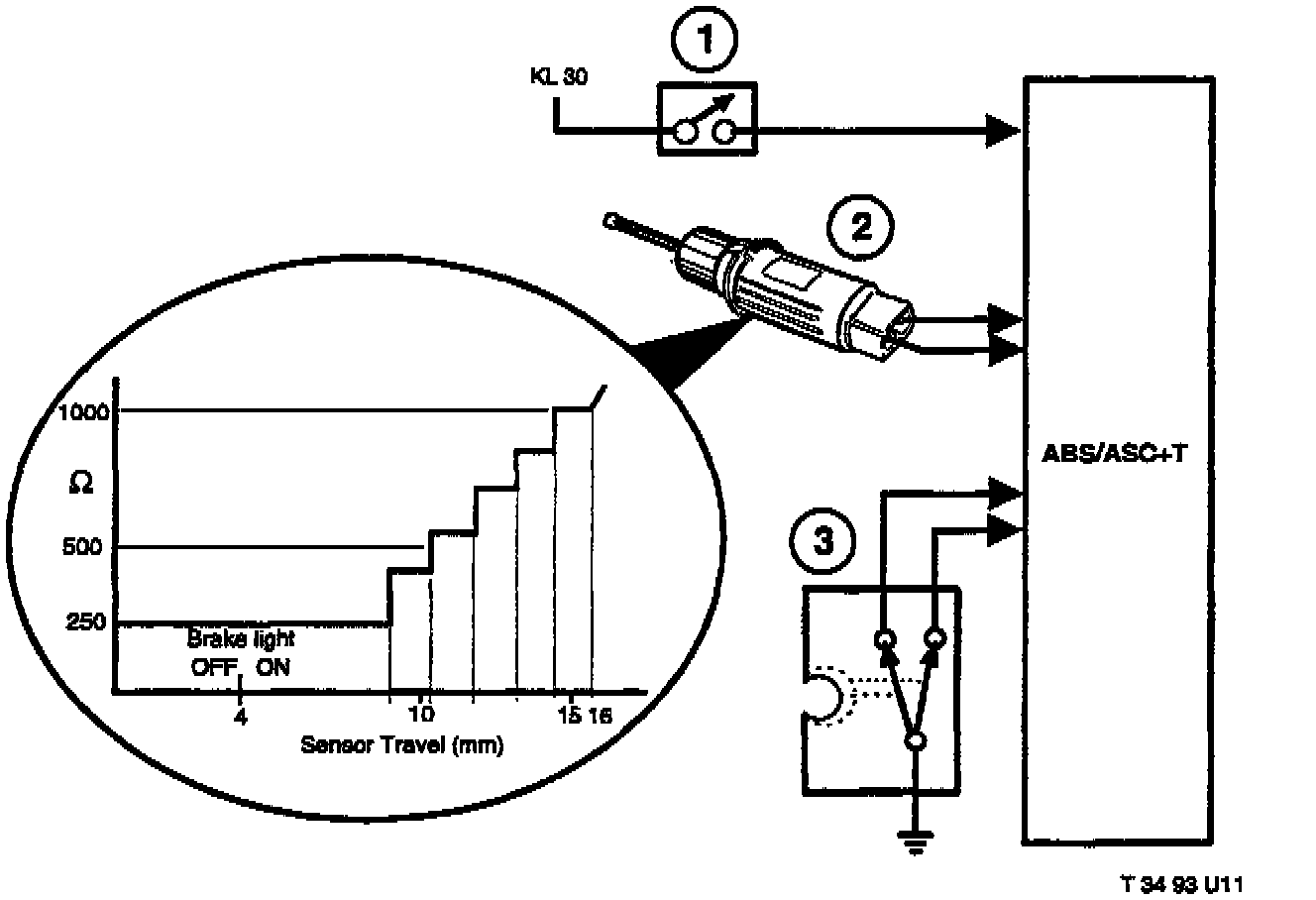

If the brakes are applied during traction control, the traction phase of ASC regulation is switched off immediately. The ASC+T control module monitors the brake light switch (1) and the pedal position sensor (2) for braking application. Either signal to the control module will cause traction control to switch off, as will low system pressure, monitored by the pressure switch (3).
