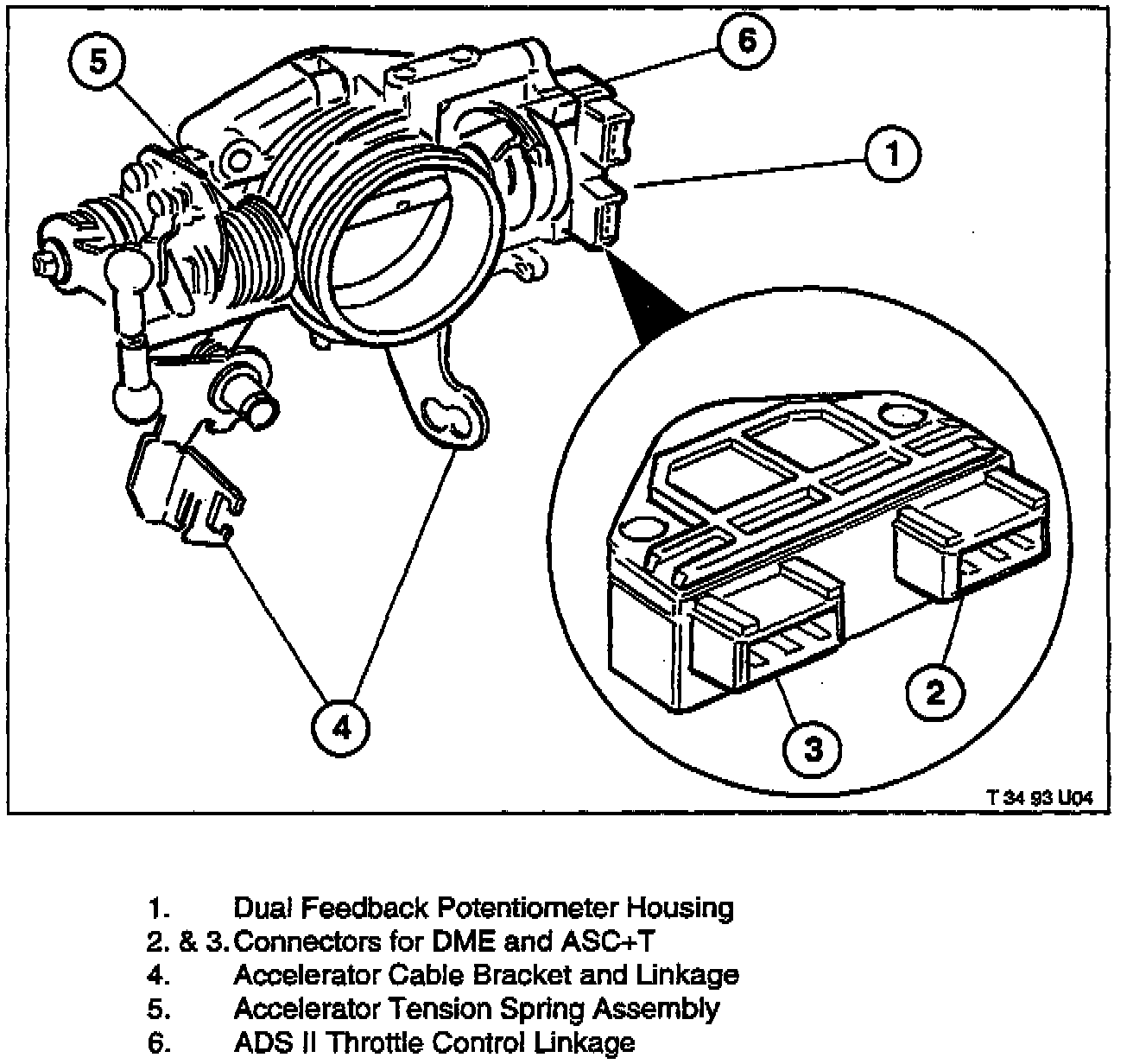

Throttle Valve W/Dual Feedback Potentiometer

Throttle Valve

The throttle valve is operated via cable from the accelerator pedal as in the past. An additional tension spring allows the ADS motor to close the throttle valve regardless of how far the accelerator is being pressed.





Dual Feedback Potentiometer

The throttle potentiometer is a dual potentiometer. One potentiometer is the throttle position input signal to the DME as in the past. The second potentiometer is the actual throttle valve position input to the ASC+T control module during ASC regulation.
